كيفية التقاط وتصدير سجلات نظام الهاتف ؟

المقدمة

نظرة عامة

عندما يواجه الهاتف إعادة تشغيل غير متوقعة، أو تجميد في النظام، أو أخطاء برمجية، أو أي سلوك غير طبيعي آخر، يمكن استخدام التقاط سجلات النظام لجمع بيانات التشخيص لدعم فني. تساعد هذه السجلات المهندسين على تحديد المشكلة وتحليلها وحلها بكفاءة أكبر.

الطرازات المعمول بها

المنتجات المدعومة: جميع طرازات الهواتف.
   البرامج الثابتة المدعومة: جميع إصدارات البرامج الثابتة للطرازات المدعومة.

المتطلبات الأساسية

① هاتفان BX4U متصلان بمحول شبكة وقادران على الحصول على عناوين IP تلقائيًا.
   ② جهاز كمبيوتر واحد للتكوين متصل بنفس محول الشبكة، مع تأكيد وجود اتصال شبكي بين الكمبيوتر والهواتف.

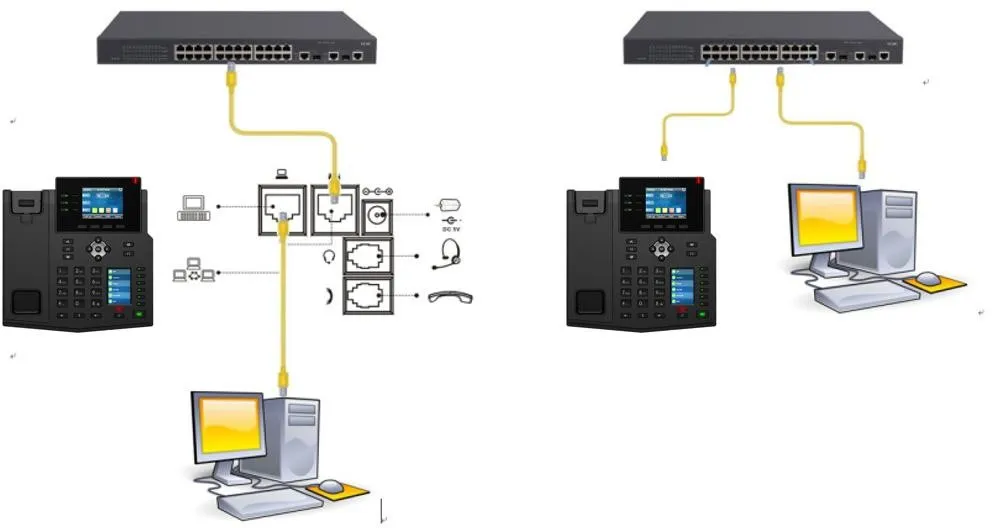

مخطط توصيل الهاتف وجهاز الكمبيوتر

مخطط توصيل الهاتف وجهاز الكمبيوتر

الإجراءات

الطريقة 1: التقاط السجلات من واجهة ويب الهاتف

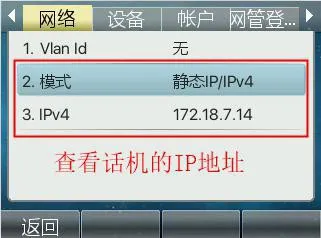

1. التحقق من عنوان IP الخاص بالهاتف.

على شاشة الهاتف LCD، انتقل إلى القائمةالحالة لعرض عنوان IP الحالي للهاتف.

التحقق من عنوان IP الخاص بالهاتف

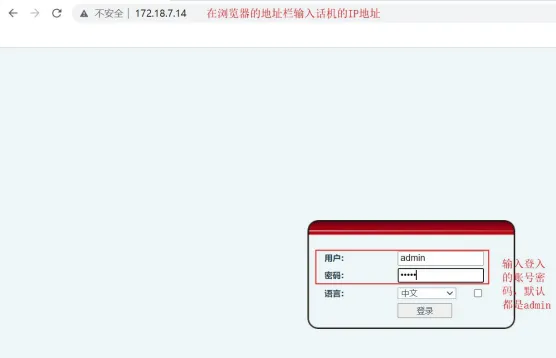

2. تسجيل الدخول إلى واجهة ويب الهاتف.

واجهة ويب الهاتف

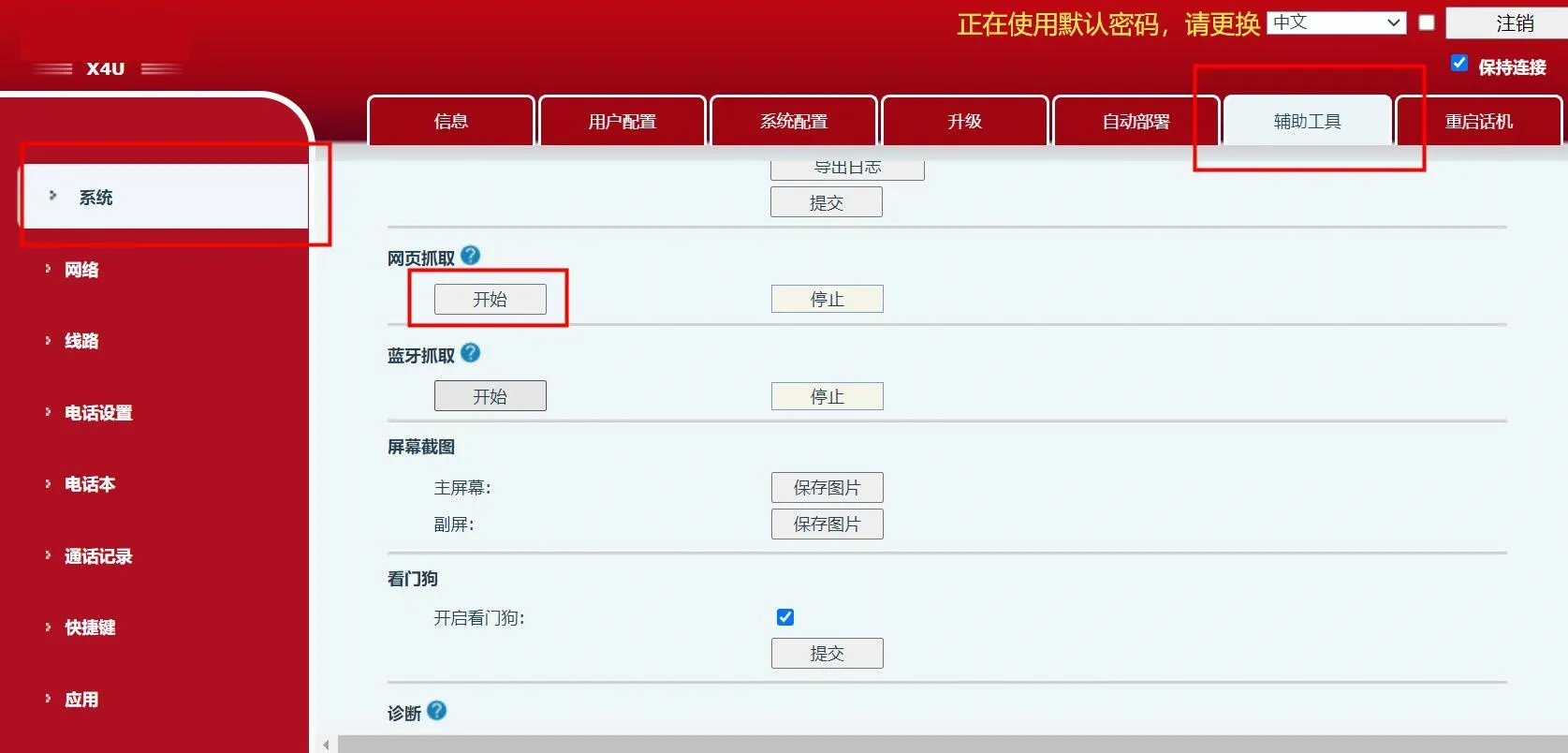

3. بدء التقاط الحزم عبر الويب.

في واجهة الويب، انتقل إلى النظام -- الأدوات -- التقاط الشبكة، ثم انقر على بدء.

بدء التقاط الحزم عبر الويب

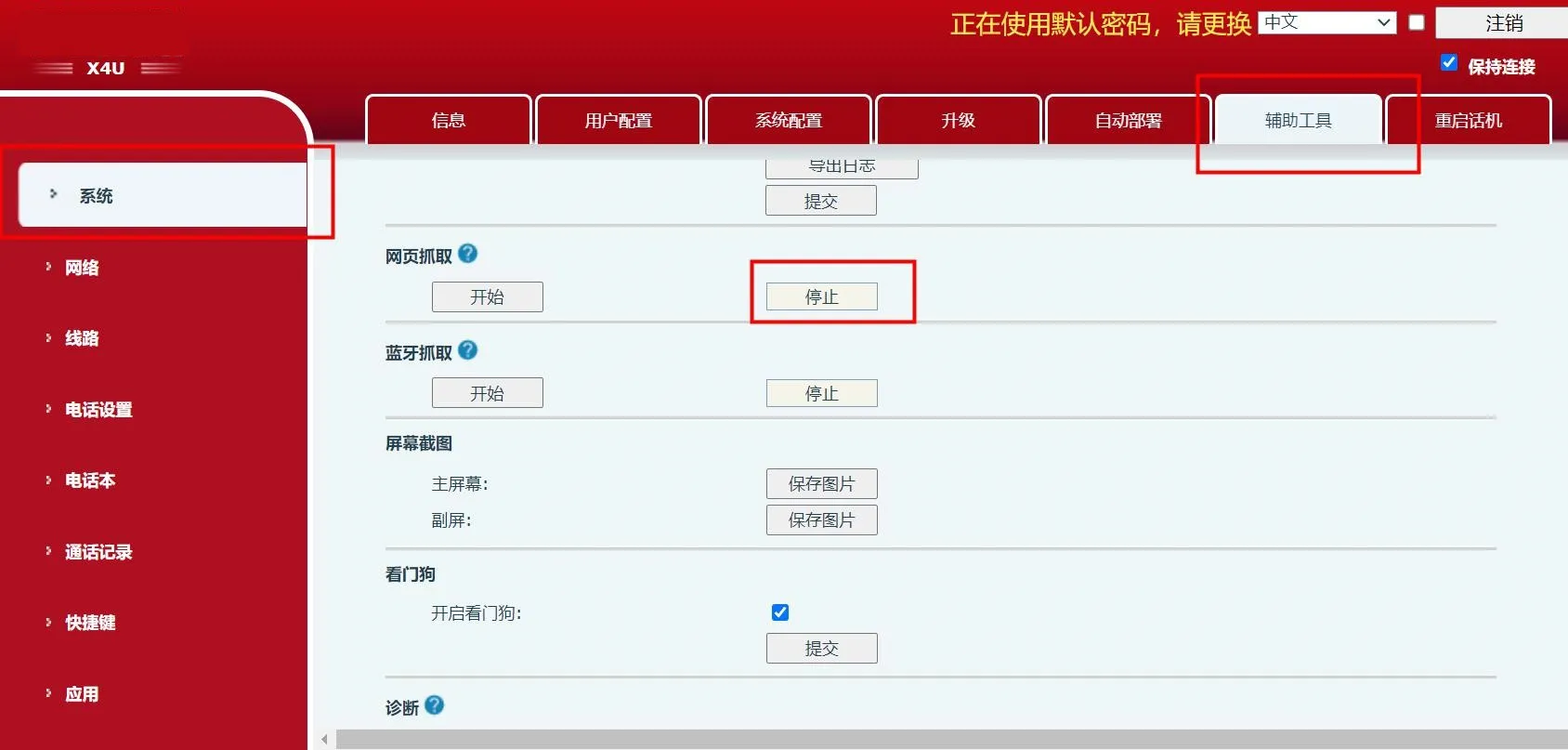

كرر الإجراء الذي يسبب المشكلة. على سبيل المثال، إذا كانت المشكلة عدم وجود صوت أثناء المكالمة، قم بإجراء مكالمة اختبار وإعادة إنتاج العيب. بمجرد ظهور المشكلة، انقر على إيقاف.

إيقاف التقاط الحزم

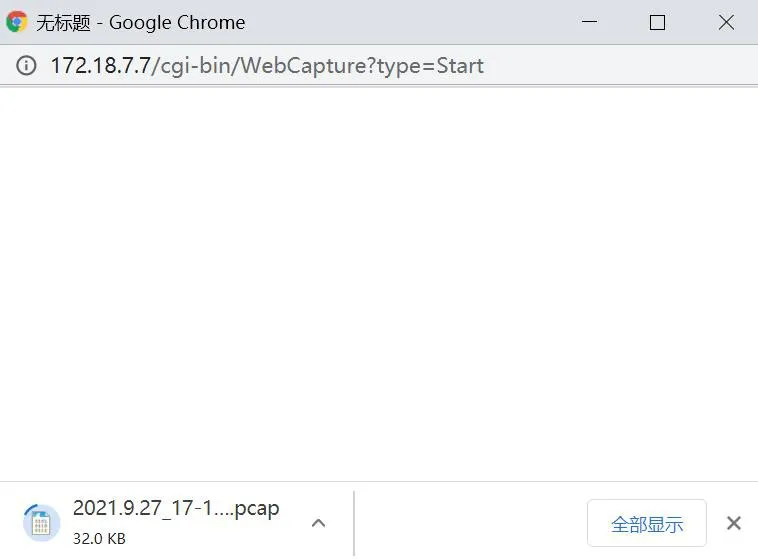

سيعرض المتصفح بعد ذلك مطالبة بالتنزيل ويبدأ في حفظ ملف التقاط.

تنزيل ملف التقاط الحزم

بعد إيقاف التقاط الحزم، سيكتمل تنزيل الملف تلقائيًا.

اكتمل تنزيل ملف التقاط الحزم

أرسل ملف pcap الناتج إلى فريق الدعم الفني لدينا للتحليل.

الطريقة 2: التقاط السجلات باستخدام Wireshark (لهاتف واحد أو عدة هواتف)

1. برنامج Wireshark هو أداة تحليل حزم شبكية يتم تثبيتها على جهاز كمبيوتر. يمكن تنزيلها وتثبيتها بشكل منفصل.

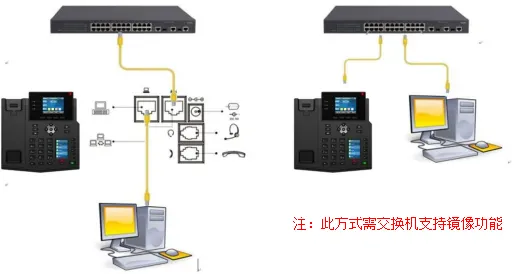

أمثلة للتوصيل الفيزيائي لتقاط الحزم على جهاز الكمبيوتر:

طريقة توصيل التقاط 1                            طريقة توصيل التقاط 2

طرق توصيل التقاط الحزم

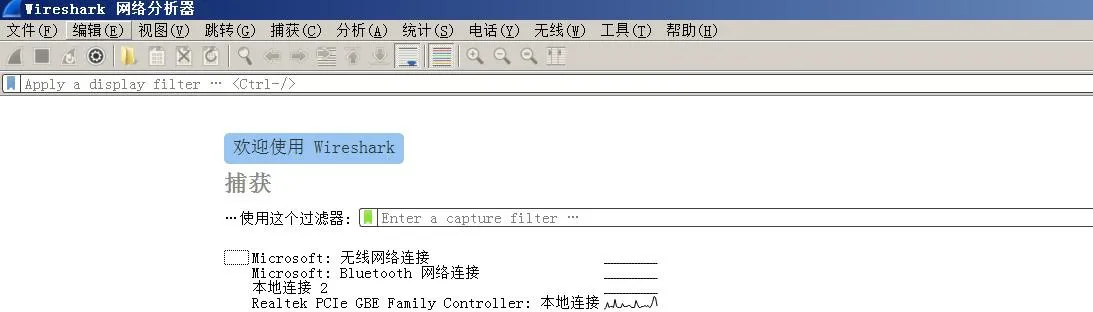

2. افتح برنامج Wireshark بالنقر المزدوج على التطبيق. بعد التشغيل، اختر واجهة الشبكة الصحيحة.

إذا كنت تستخدم اتصالاً سلكياً، فاختر محول الإيثرنت المحلي. إذا كنت تستخدم شبكة Wi-Fi، فاختر المحول اللاسلكي. في المثال أدناه، يجب تحديد اتصال الإيثرنت المحلي.

فتح Wireshark واختيار واجهة الشبكة الصحيحة

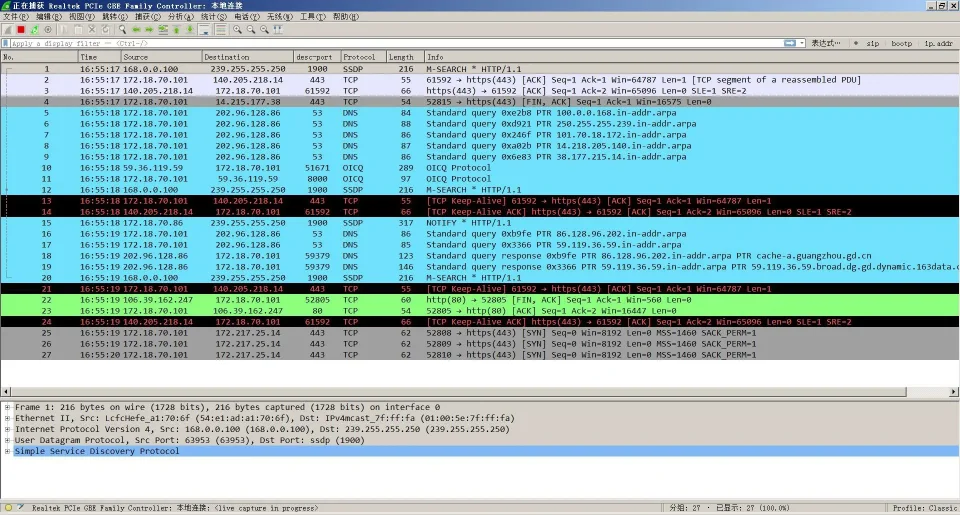

3. بمجرد تحديد الواجهة، سيبدأ برنامج Wireshark على الفور في التقاط الحزم المرسلة والمستلمة من جهاز الكمبيوتر. الشاشة أدناه تشير إلى أن التقاط الحزم جارٍ بالفعل.

Wireshark يقوم بتنشيط التقاط حركة المرور الشبكية

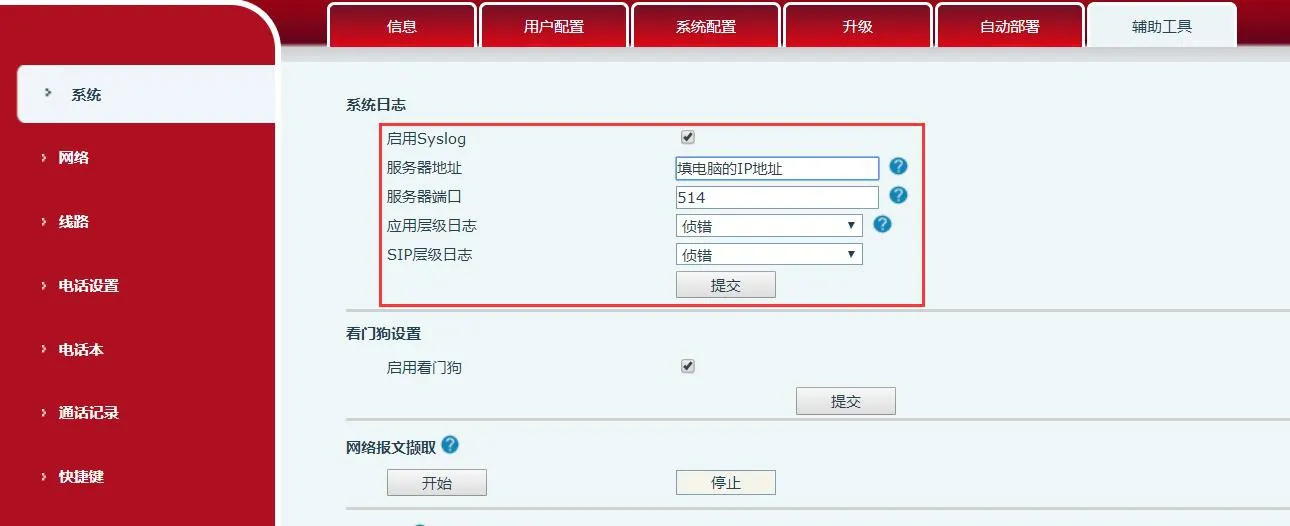

4. سجل الدخول إلى واجهة ويب الهاتف وقم بتفعيل وظيفة سجلات النظام.

تفعيل سجلات النظام في واجهة ويب الهاتف

5. أعد إنتاج المشكلة مرة أخرى.

على سبيل المثال، إذا كانت المشكلة انتهاء مهلة التسجيل، فأعد إرسال تسجيل SIP. إذا فشل تحويل المكالمة، فأجرِ اختبار التحويل مرة أخرى. إذا كانت المشكلة متعلقة بصوت المكالمة، فأجرِ مكالمة اختبار أخرى وأعد إنتاج المشكلة.

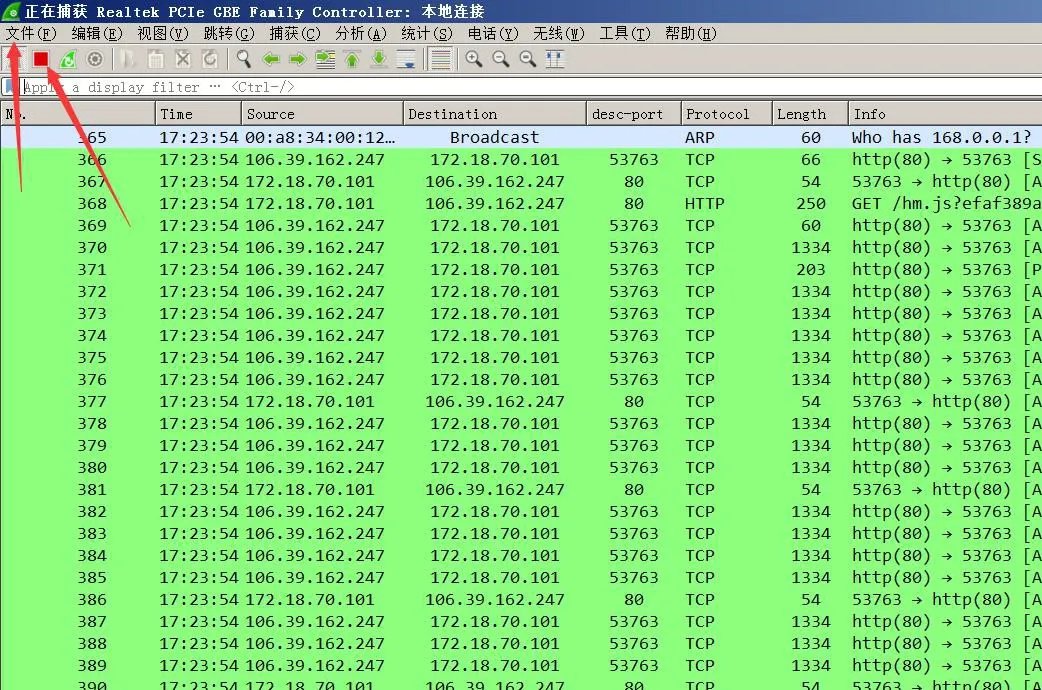

6. أوقف واحفظ ملف التقاط بعد الانتهاء من الاختبار.

① انقر على الزر الأحمر في الزاوية العلوية اليسرى لإيقاف التقاط.
   ② انقر على ملف - حفظ باسم لحفظ ملف التقاط.
   ③ أرسل ملف الحزم المحفوظ إلى فريق الدعم الفني لدينا للتحليل.

حفظ ملف التقاط لبرنامج Wireshark
