كيفية تكوين PeertoPeer المكالمات بين SIP Intercoms و IP الهواتف BHP-SOS10 و BHP-SOS16 سلسلة ؟

المقدمة

نظرة عامة

الاتصال نظير إلى نظير، المعروف أيضًا باسم اتصال IP أو اتصال IP المباشر، هو الاتصال المباشر بين جهازين طرفيين دون الحاجة إلى أجهزة أو خوادم طرف ثالث. إنه أبسط طريقة لتحقيق الاتصال الصوتي والمرئي بتكلفة منخفضة وتكوين سهل، ولكنه يعمل فقط في الشبكة المحلية (LAN) ولا يمكنه عبور الشبكات المختلفة.

الموديلات المطبقة

الهواتف IP: BF600S، BX7A.
الأجهزة الصناعية: BHP-SOS16V، BHP-SOS10V، BHP-SOS10D.

أدوات التحضير المسبقة

① هاتف IP واحد من طراز BX7A/BF600S، وجهاز اتصال داخلي واحد من طراز BHP-SOS16V/BHP-SOS10V/BHP-SOS10D، ومبدل PoE واحد (أو مصدر طاقة تيار مستمر). قم بتوصيل جميع الأجهزة بالمبدل.
② جهاز كمبيوتر تصليح متصل بنفس المبدل لضمان الاتصال الشبكي بين الكمبيوتر والأجهزة.

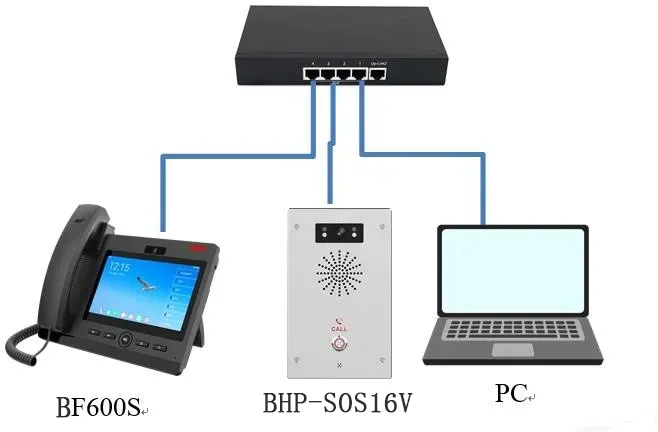

مخطط توصيل الأجهزة والكمبيوتر

قم بتوصيل جهاز الاتصال الداخلي BHP-SOS16V/BHP-SOS10V/BHP-SOS10D والهاتف IP BX7A/BF600S بالمبدل، واتصل بالكمبيوتر بنفس المبدل لضمان الاتصال الشبكي الطبيعي. يُظهر مخطط التوصيل أدناه.

طريقة تكوين الاتصال نظير إلى نظير

يمكن استخدام طرق مختلفة لإجراء مكالمات نظير إلى نظير بين الهواتف IP وأجهزة الاتصال الداخلي في سيناريوهات مختلفة. يوضح هذا القسم بالتفصيل تكوين الاختصار لمكالمات نظير إلى نظير.

ضبط عنوان IP ثابت

لإجراء مكالمات نظير إلى نظير، يجب تكوين الأجهزة الطرفية بعناوين IP ثابتة. يجب تخصيص عنوان IP مختلف لكل طرف في الشبكة في نفس الشبكة الفرعية (نفس عنوان الشبكة، عناوين مضيف مختلفة). خطوات التكوين المفصلة كالتالي:

2.1.1 استعلام عنوان IP

① أجهزة الاتصال الداخلي (BHP-SOS16V/BHP-SOS10V/BHP-SOS10D): تم تمكين DHCP افتراضيًا.

  • إذا كانت الشبكة تدعم DHCP: اضغط باستمرار على مفتاح DSS لمدة 5 ثوانٍ تقريبًا في وضع الانتظار. بعد سماع نغمة الإشعار، اضغط على مفتاح DSS مرة أخرى، وسيعمل الجهاز على بث عنوان IP الحالي.

  • إذا كانت الشبكة **لا تدعم** DHCP: اضغط باستمرار على مفتاح DSS لمدة 5 ثوانٍ تقريبًا في وضع الانتظار. بعد سماع نغمة الإشعار، اضغط عليه 3 مرات بسرعة لتبديل وضع الشبكة. سيعمل الجهاز على بث عنوان IP بعد التبديل بنجاح.

② أجهزة الهاتف IP:

  • إذا كانت الشبكة تدعم DHCP: اضغط على زر الإعدادات على شاشة BX7A/BF600S في وضع الانتظار. انتقل إلى الحالة --- عام --- عنوان IP لعرض عنوان IP الحالي.

  • إذا كانت الشبكة **لا تدعم** DHCP: اضغط على زر الإعدادات على الشاشة. انتقل إلى إيثرنت --- وضع الشبكة --- اختر IP ثابت لضبط عنوان IP ثابت.

2.1.2 تكوين عنوان IP ثابت

① أدخل عنوان IP للجهاز الذي تم الحصول عليه في المتصفح لتسجيل الدخول إلى واجهة الويب (Web UI) للهاتف IP وجهاز الاتصال الداخلي. اسم المستخدم وكلمة المرور الافتراضيين كلاهما admin. واجهة تسجيل الدخول موضحة في الشكل 2.

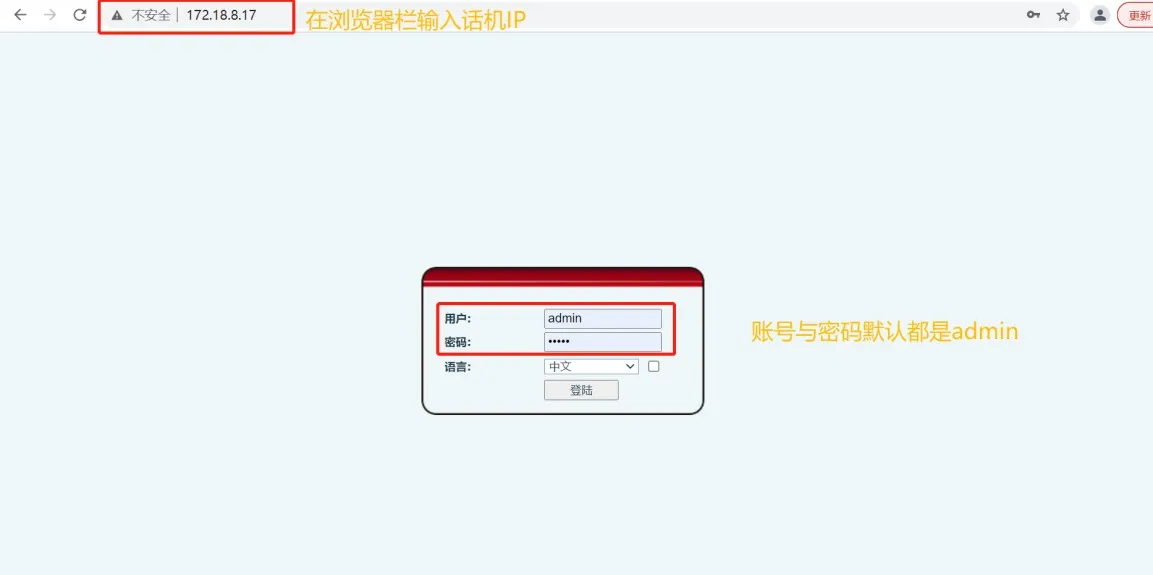

IP Phone Login Interface

الشكل 2 واجهة تسجيل الدخول للهاتف IP

② أدخل واجهة الويب للجهاز، وانتقل إلى الشبكة --- أساسي --- إعدادات IPv4، واختر IP ثابت، وقم بتكوين معلمات IP الثابت كما هو موضح في الشكل 3.

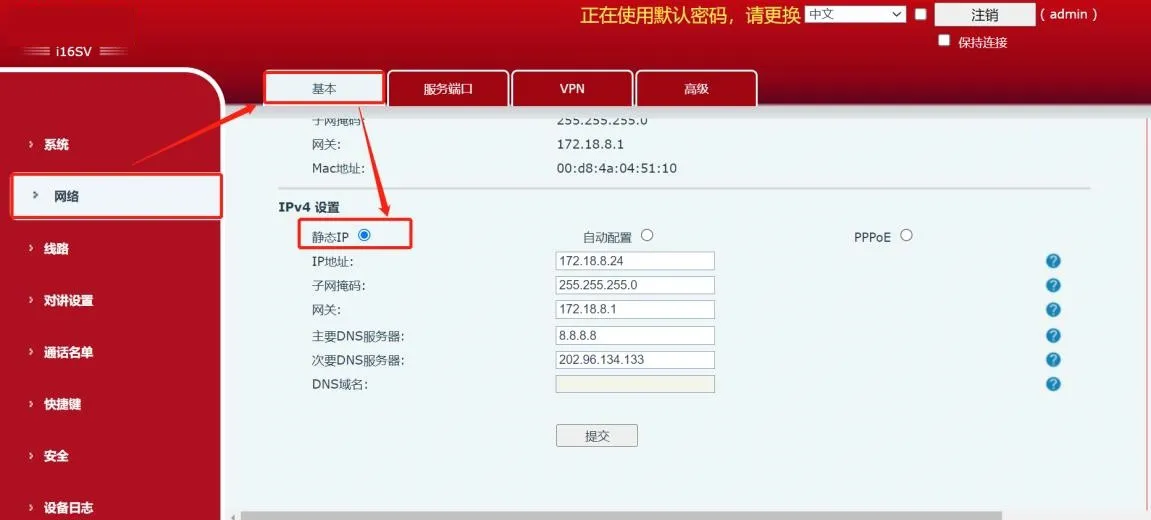

Static IP Address Configuration

الشكل 3 تكوين عنوان IP ثابت

اتصال الهاتف IP بجهاز الاتصال الداخلي

في وضع نظير إلى نظير، يمكن للهاتف IP الاتصال بجهاز الاتصال الداخلي. تكوين الاختصار موضح بالتفصيل أدناه: ① أدخل عنوان IP للهاتف IP في المتصفح وسجل الدخول إلى واجهة الويب (الافتراضي admin/admin).
② انقر على زر الاختصارات لدخول صفحة تكوين الاختصارات. نستخدم الاختصار 1 كمثال، وقم بالتكوين كما هو موضح في الشكل 4.

  • النوع: مفتاح ذاكرة

  • الاسم: اسم مخصص (يظهر على الشاشة)

  • القيمة: أدخل عنوان IP جهاز الاتصال الداخلي (مثال: 172.18.8.24)

  • النوع الفرعي: BLF/اتصال جديد

  • الخط: SIP1

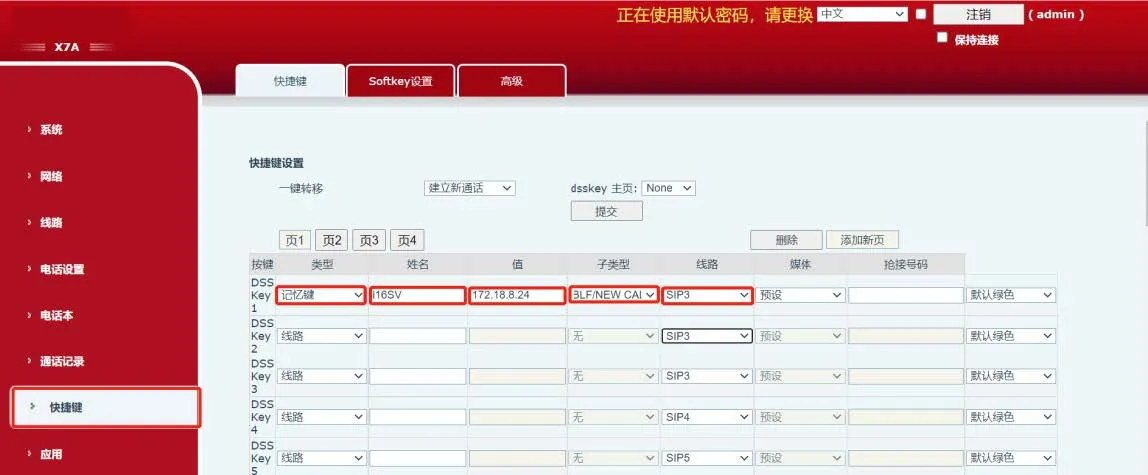

IP Phone Shortcut Configuration

الشكل 4 تكوين اختصار الهاتف IP

2.2.2 ملاحظات

① إذا لم يتمكن الهاتف IP من الاتصال بجهاز الاتصال الداخلي، قم بتعديل تكوين جهاز الاتصال الداخلي:
سجل الدخول إلى واجهة الويب لجهاز الاتصال الداخلي، وانتقل إلى إعدادات الاتصال الداخلي -- إعدادات الوظيفة -- الإعدادات الأساسية، وقم بتحديد السماح باتصال IP كما هو موضح في الشكل 5.

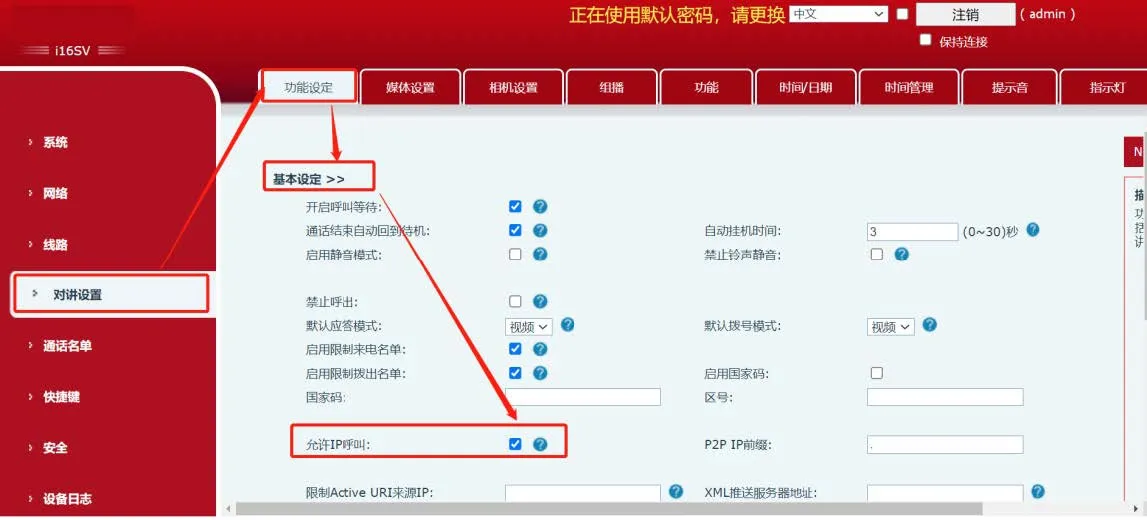

Intercom Allow IP Call Configuration

الشكل 5 تكوين السماح باتصال IP لجهاز الاتصال الداخلي

اتصال جهاز الاتصال الداخلي بالهاتف IP

في وضع نظير إلى نظير، يمكن لجهاز الاتصال الداخلي الاتصال بالهاتف IP. تكوين الاختصار موضح بالتفصيل أدناه:

2.3.1 تكوين الاختصار

① أدخل عنوان IP جهاز الاتصال الداخلي في المتصفح وسجل الدخول إلى واجهة الويب (الافتراضي admin/admin).
② انقر على زر الاختصارات لدخول صفحة التكوين. نستخدم الاختصار 1 كمثال، وقم بالتكوين كما هو موضح في الشكل 6.

  • النوع: مفتاح ذاكرة

  • الاسم: اسم مخصص

  • القيمة: أدخل عنوان IP للهاتف IP (مثال: 172.18.8.19)

  • النوع الفرعي: BLF/اتصال جديد

  • الخط: SIP1

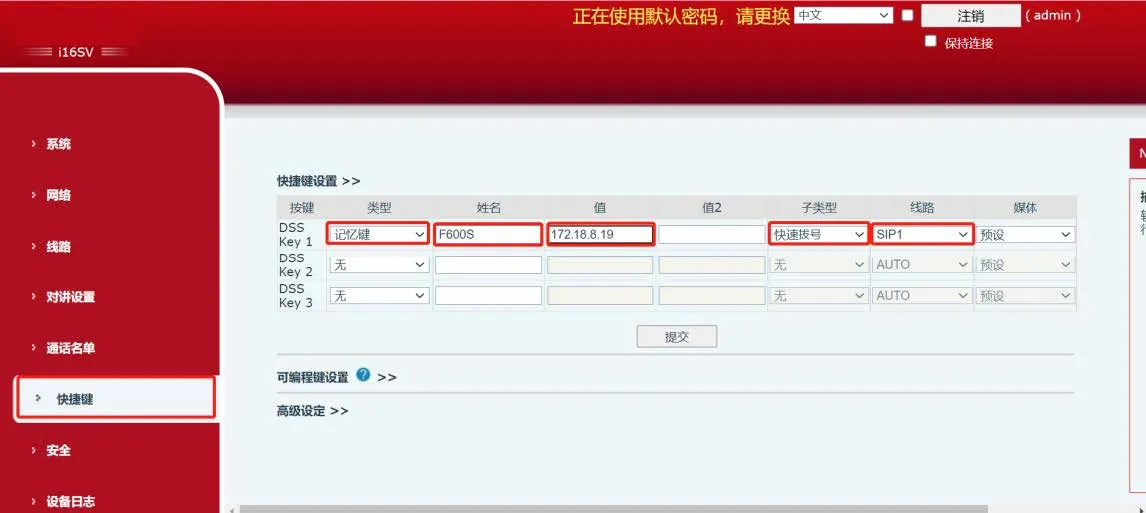

Intercom Shortcut Configuration

الشكل 6 تكوين اختصار جهاز الاتصال الداخلي

2.3.2 ملاحظات

إذا سمعت نغمة الانشغال عند قيام جهاز الاتصال الداخلي بالاتصال بالهاتف IP، اتبع الخطوات التالية: ① سجل الدخول إلى واجهة الويب للهاتف IP، وانتقل إلى الحساب -- SIP -- الإعدادات العامة، وقم بإلغاء تحديد تمكين مطابقة UA الصارمة كما هو موضح في الشكل 7.

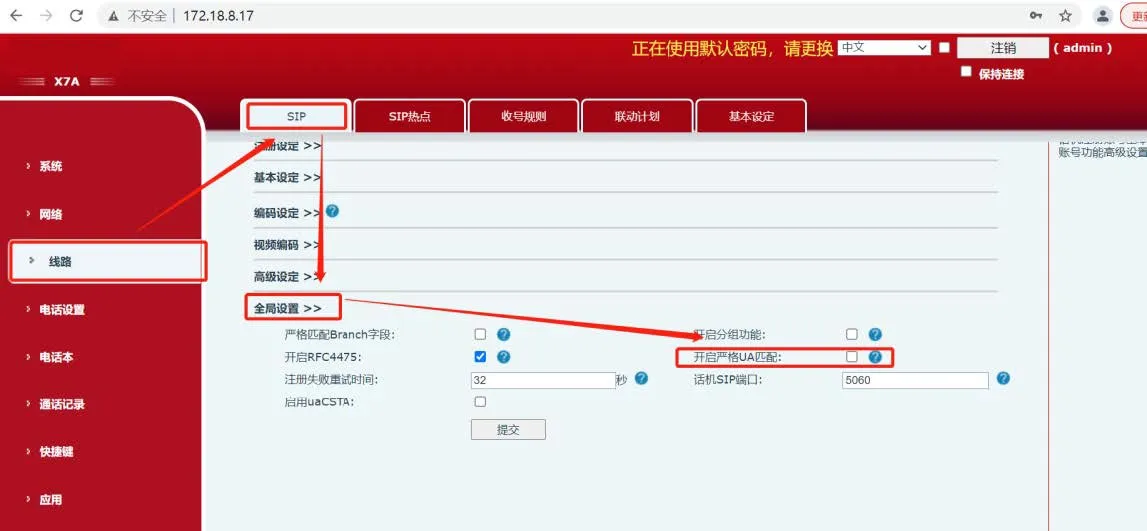

IP Phone Disable Strict UA Match

الشكل 7 تعطيل مطابقة UA الصارمة للهاتف IP

② سجل الدخول إلى واجهة الويب لجهاز الاتصال الداخلي، وانتقل إلى إعدادات الاتصال الداخلي -- إعدادات الوظيفة -- الإعدادات الأساسية، وقم بإلغاء تحديد تعطيل المكالمات الصادرة كما هو موضح في الشكل 8.

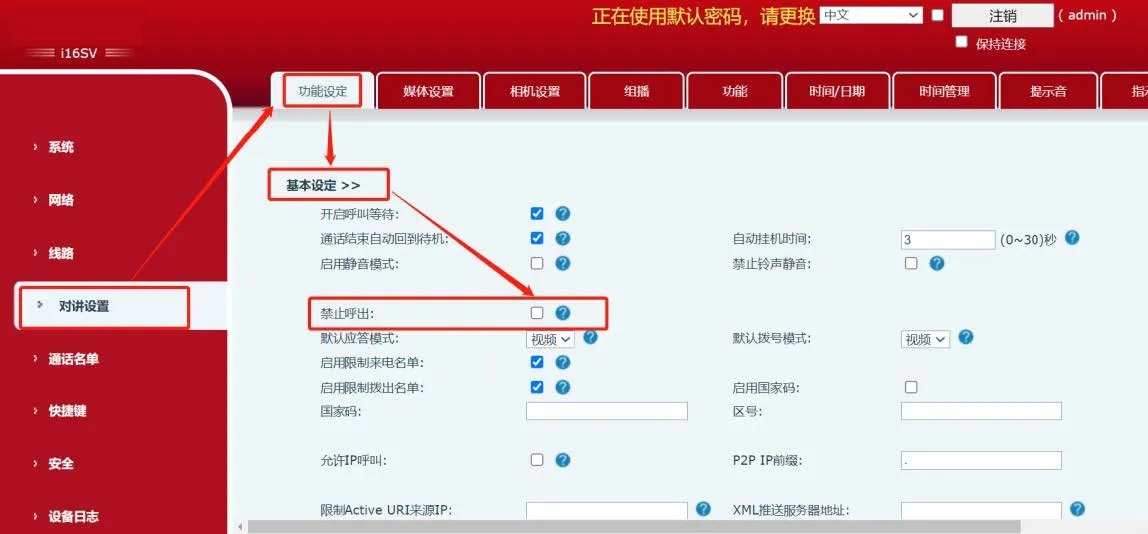

Intercom Disable Outgoing Call Restriction

الشكل 8 تعطيل قيود المكالمات الصادرة لجهاز الاتصال الداخلي

③ بعد إكمال الإعدادات أعلاه، يمكن لجهاز الاتصال الداخلي الاتصال بالهاتف IP بنجاح.
