كيفية توصيل قفل كهربائي بوحدات التحكم في الوصول الداخلية Bi20S و Bi30 ؟

مقدمة

نظرة عامة

يوضح هذا الدليل كيفية توصيل الأسلاك للقفل الكهربائي بوحدات التحكم في الوصول الداخلي من طراز Bi20S وBi30. تعتمد طريقة توصيل الأسلاك الصحيحة على تيار بدء تشغيل القفل ومتطلبات الطاقة الخاصة به.

إذا كان تيار بدء تشغيل القفل أقل من 12 فولت/500 مللي أمبير، يمكن لوحدة التحكم في الوصول تشغيل القفل مباشرةً. ويُشار إلى هذا باسم وضع الطاقة الداخلي. إذا كان تيار بدء تشغيل القفل أعلى من 12 فولت/500 مللي أمبير، فيجب استخدام وحدة التحكم في الوصول كمشغل ترحيل فقط، ويجب تشغيل القفل بمصدر طاقة خارجي خاص به. ويُشار إلى هذا باسم وضع الطاقة الخارجي.

يتم اختيار هاتين الوضعيتين عن طريق ضبط موصل القفز JP1. اتبع الإرشادات أدناه لاختيار الوضع الصحيح وإكمال توصيل الأسلاك بأمان.

الموديلات المدعومة

Bi20S، Bi30

المستلزمات المطلوبة

1. وحدة تحكم في الوصول الداخلي Bi20S واحدة، وقفل كهربائي واحد، ومحول طاقة للقفل، ومبدل شبكة PoE واحد (أو مصدر طاقة تيار مستمر DC).

2. تأكيد وضع الطاقة الذي يتطلبه القفل، ثم ضبط إعدادات JP1 الصحيحة على الوحدة الداخلية.

3. جهاز كمبيوتر واحد للإعداد والاختبار، متصل بنفس الشبكة التي تتصل بها جهاز التحكم في الوصول.

اتصال شبكة الجهاز وجهاز الكمبيوتر

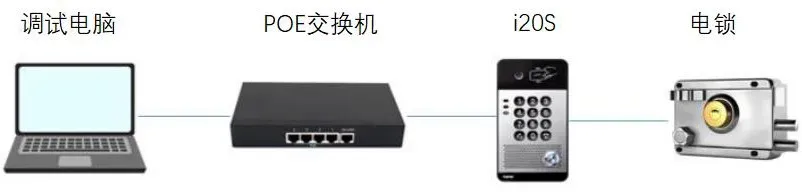

قم بتوصيل وحدة التحكم في الوصول بالمبدل الشبكي، ثم قم بتوصيل الكمبيوتر بنفس المبدل بحيث يكون كلا الجهازين على نفس الشبكة ويمكنهما التواصل مع بعضهما البعض، كما هو موضح في الشكل 1.


                                                                                                     الشكل 1

إجراءات الإعداد

قبل توصيل أسلاك القفل، افتح وحدة التحكم في الوصول واضبط موصل القفز JP1 وفقًا لوضع طاقة القفل. ثم قم بتوصيل القفل باستخدام طريقة توصيل الأسلاك المناسبة.

فتح وحدة التحكم في الوصول

استخدم مفك البراغي لإزالة البراغي الموجودة على الوحدة، ثم افتح الغلاف.

ضبط موصل القفز JP1

اضبط موصل القفز JP1 وفقًا لمواصفات القفل.

عندما يكون تيار بدء تشغيل القفل أقل من 12 فولت/500 مللي أمبير، يمكن للوحدة الداخلية توفير الطاقة للقفل. وهذا هو وضع الطاقة الداخلي.

عندما يكون تيار بدء تشغيل القفل أعلى من 12 فولت/500 مللي أمبير، تعمل الوحدة الداخلية فقط كمخرج تحكم بجهة اتصال جافة، ويجب أن يستخدم القفل مصدر طاقة خارجي خاص به. وهذا هو وضع الطاقة الخارجي.

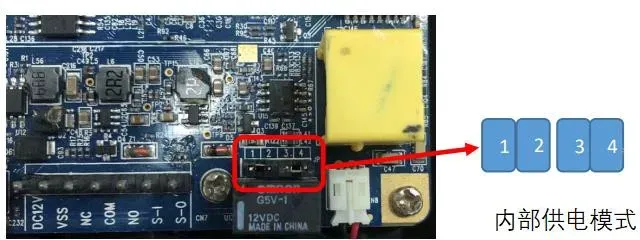

ضبط JP1 لوضع الطاقة الداخلي

ضبط JP1 لوضع الطاقة الداخلي

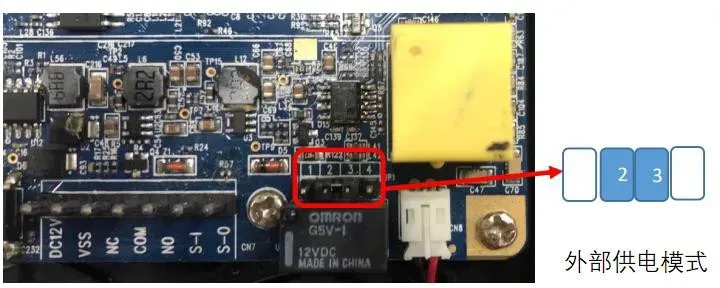

ضبط JP1 لوضع الطاقة الخارجي

ضبط JP1 لوضع الطاقة الخارجي

توصيل أسلاك القفل الكهربائي

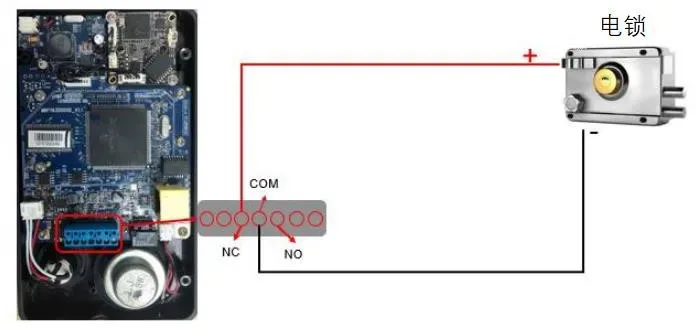

توصيل أسلاك الطاقة الداخلي


ملاحظة: تأكد مما إذا كان القفل من نوع Fail-safe (يُقفل عند تشغيل الطاقة) أم Fail-secure (يُفتح عند تشغيل الطاقة)، لأن الطرف الموجب يتصل بشكل مختلف لكل نوع. بالنسبة للقفل من نوع Fail-safe، قم بتوصيل السلك الموجب بـ NC (مغلق دائمًا). بالنسبة للقفل من نوع Fail-secure، قم بتوصيل السلك الموجب بـ NO (مفتوح دائمًا).

تحذير: في وضع الطاقة الداخلي، لا تقم بتوصيل مصدر طاقة خارجي إضافي للقفل في نفس الوقت، فقد يتسبب ذلك في إتلاف الجهاز.

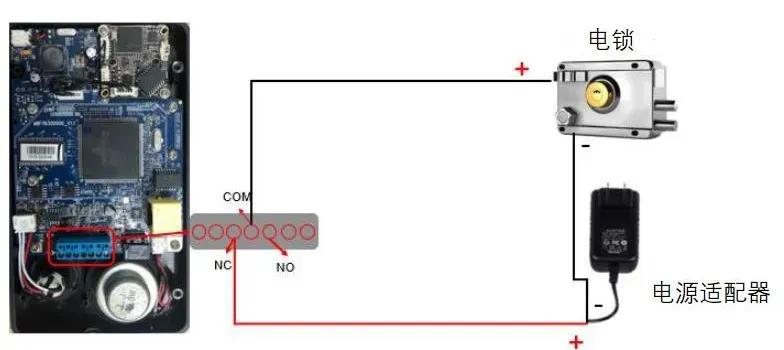

توصيل أسلاك الطاقة الخارجي


ملاحظة 1: اختر NC أو NO بناءً على نوع القفل.

ملاحظة 2: يدعم مخرج الترحيل لوحدة التحكم في الوصول ما يصل إلى DC 30 فولت/1 أمبير أو AC 125 فولت/0.5 أمبير.

تشغيل الطاقة والاختبار

1. إذا كنت تستخدم وضع الطاقة الخارجي، قم بتشغيل محول الطاقة الخارجي لتوفير الطاقة للقفل.

2. على جهاز الكمبيوتر المستخدم للإعداد، افتح متصفح الويب وأدخل عنوان IP وحدة التحكم في الوصول.

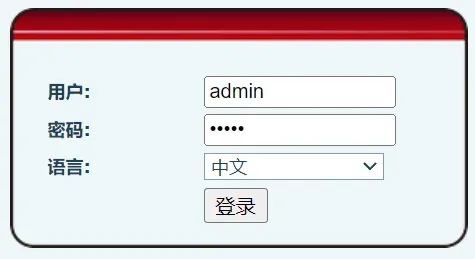

3. أدخل بيانات تسجيل الدخول. اسم المستخدم الافتراضي هو admin وكلمة المرور الافتراضية هي admin.

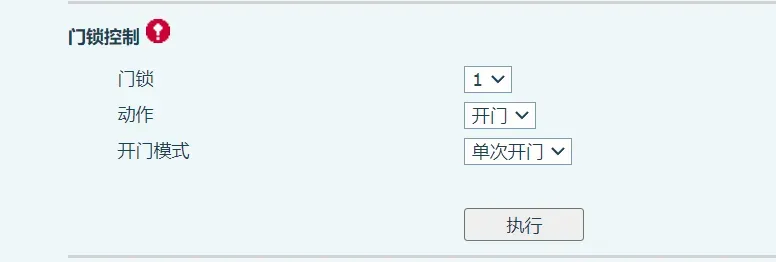

4. انتقل إلى قسم قفل الباب > التحكم في قفل الباب، ثم انقر على تنفيذ لاختبار ما إذا كان القفل يفتح بشكل صحيح.

تنفيذ التحكم في قفل الباب
