كيفية توصيل SIP Access Control أو SIP Intercom بـ NVR ؟

المقدمة

نظرة عامة

يصف هذا المستند كيفية توصيل أجهزة التحكم في الوصول SIP وأجهزة الاتصال الداخلي SIP بجهاز NVR، وذلك بشكل أساسي لتحقيق تسجيل الفيديو لمنتجات المحطات الصناعية. يقوم عميل NVR بإرسال أوامر RTSP إلى المحطة الفيديو الصناعية، وتقوم المحطة بإرجاع تدفق الفيديو الصادر من الكاميرا المدمجة إلى العميل، مما يسمح بعرض الفيديو في الوقت الفعلي وتسجيله.
يرمز NVR إلى مسجل الفيديو الشبكي (Network Video Recorder)، وهو المكون المسؤول عن التخزين وإعادة توجيه البيانات في نظام مراقبة الفيديو الشبكي. يعمل جهاز NVR مع مشفرات الفيديو أو كاميرات IP لتنفيذ وظائف تسجيل الفيديو وتخزينه وإعادة توجيهه.

الموديلات المدعومة

BHP-SOS16, BHP-SOS18, BHP-SOS30, BHP-SOS30V, BHP-SOS33V, BK-DAB-PA2, BHP-SOS10, BHP-SOS10V, BHP-SOS11, BHP-SOS11V, BHP-SOS16V.

التحضير لبيئة تسجيل الفيديو بواسطة NVR

1.3.1 تحضير الأجهزة

قم بتحضير محطة فيديو صناعية مزودة بكاميرا مدمجة، وجهاز NVR من شركة هايكفيجن (Hikvision) أو داهوا (Dahua).

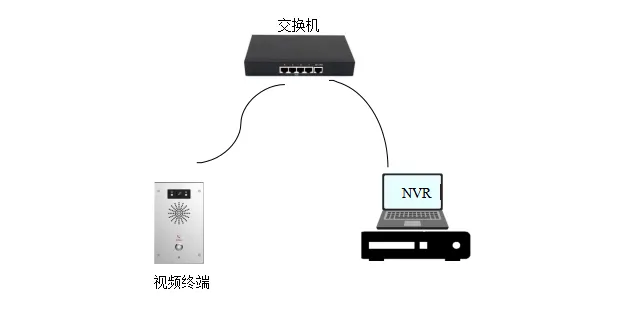

1.3.2 مخطط توصيل الشبكة

<

ملاحظة: يُستخدم مخطط الشبكة أعلاه للشبكة المحلية (LAN) فقط. بالنسبة للنشر عبر الشبكة العامة، يرجى الاتصال بفريق الدعم الفني لدينا للحصول على المساعدة.

إجراءات إضافة المحطات إلى جهاز NVR

على سبيل المثال: جهاز NVR من شركة هايكفيجن

① سجل الدخول إلى واجهة الويب لجهاز NVR عبر متصفح الإنترنت.
Log in to NVR Web Interface
② انتقل إلى قسم الإعدادات – إدارة القنوات.
Configuration Channel Management Module

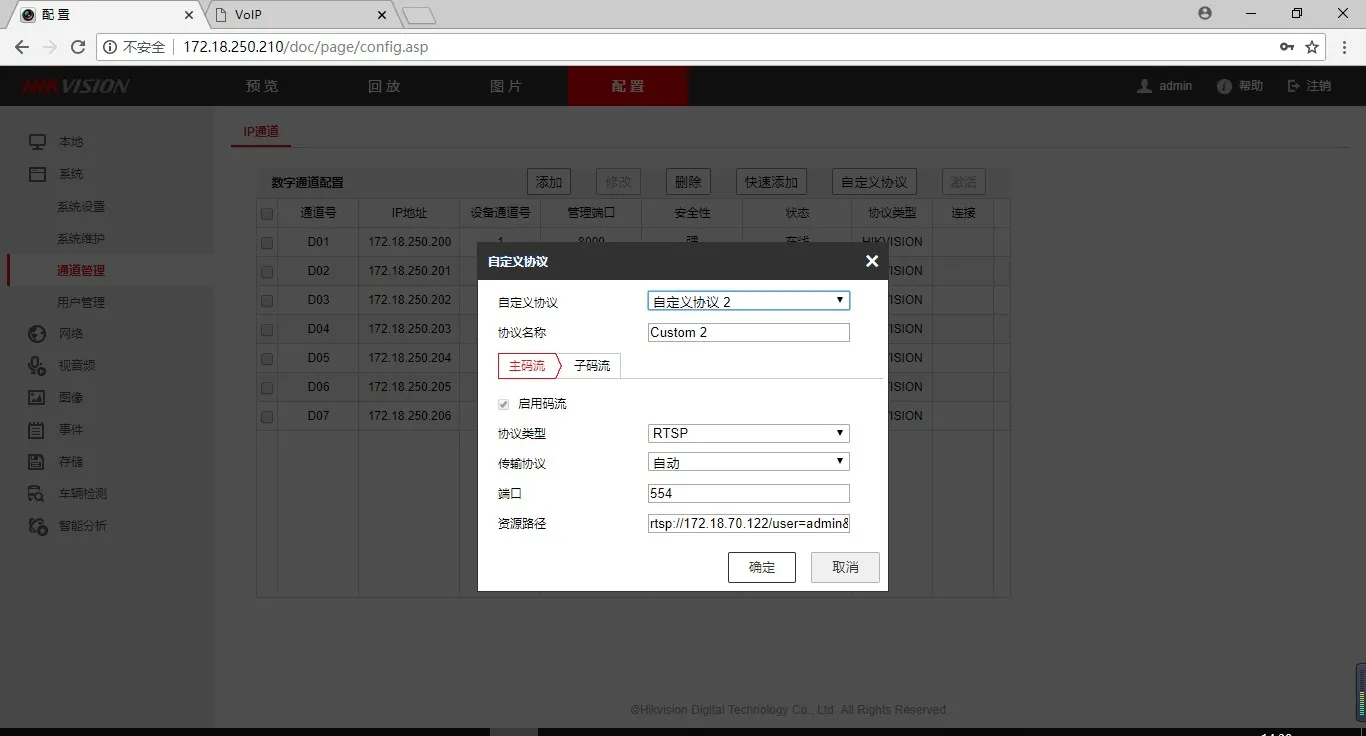

③ قم بتكوين البروتوكول المخصص:

  • نوع البروتوكول: RTSP

  • بروتوكول النقل: تلقائي

  • المنفذ: 554

  • مسار المورد: انسخ عنوان URL للتيار الرئيسي من قسم إعدادات التحكم في الوصولإعدادات الفيديومعلومات RTSP

ملاحظة: يختلف مسار القوائم حسب موديل الجهاز. بالنسبة لأجهزة الاتصال الداخلي، ابحث عن عنوان URL لـ RTSP ضمن قسم إعدادات الاتصال الداخليإعدادات الفيديو (إعدادات الكاميرا).

Intercom Video Settings
Custom Channel Configuration
④ تكوين قناة IP – إضافة:

  • عنوان قناة IP: عنوان IP لجهاز التحكم في الوصول SIP / جهاز الاتصال الداخلي SIP

  • نوع البروتوكول: اسم البروتوكول المخصص الذي قمت بإنشائه

  • منفذ الإدارة: استخدم القيمة الافتراضية للبروتوكول المخصص

  • اسم المستخدم: اسم مستخدم مخصص

  • كلمة المرور: كلمة مرور مخصصة

  • تأكيد كلمة المرور: نفس كلمة المرور أعلاه

  • بروتوكول النقل: الافتراضي

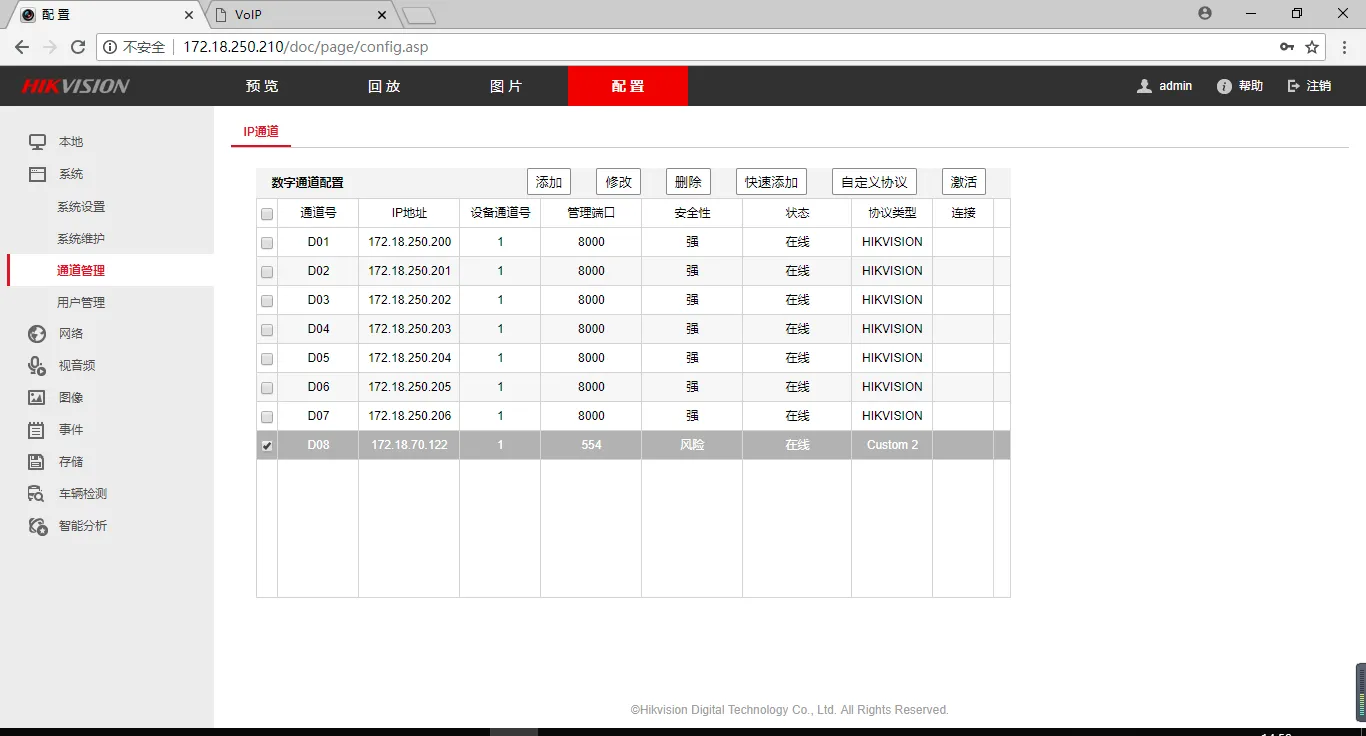

⑤ تمت الإضافة بنجاح، وتظهر الحالة على أنها متصلة (Online).
NVR Added Successfully Interface
⑥ يمكن عرض الفيديو الخاص بالقناة المقابلة في صفحة المعاينة.
