كيفية التحكم في إخراج الصوت مكبر للصوت على أجهزة SIP Intercoms الصناعية ؟

مقدمة

نظرة عامة

عندما يتم توصيل الأجهزة الصناعية بمضخم صوت خارجي، يمكنك التحكم فيما إذا كان سيتم إخراج الصوت إلى المضخم بناءً على سيناريو التطبيق. أثناء المكالمات العادية، يجب إيقاف تشغيل المضخم واستخدام مكبر الصوت المدمج فقط. أثناء البث أو إعلانات الطوارئ، يجب تنشيط المضخم. تصف هذه الوثيقة طريقتين للتحكم تنطبقان على طرازات مختلفة من الأجهزة.

النماذج المتوافقة

BHP‑SOS10, BHP‑SOS10V, BHP‑SOS10D, BHP‑SOS11V, BHP‑SOS11V2, BHP‑SOS16, BHP‑SOS16V, BK‑ROIP‑PA2, BK‑ROIP‑PA2S, BK‑ROIP‑PA3, BHP‑SOS12.

أدوات التحضير المسبقة

① جهاز واحد مدعوم (BHP‑SOS16V كمثال)، ومحول PoE (أو مصدر طاقة DC)، ومضخم صوت واحد، ومكبر صوت واحد. قم بتوصيل المضخم بالجهاز ومكبر الصوت بالمضخم. قم بتوصيل الجهاز بالمحول.
② كمبيوتر تصحيح أخطاء واحد متصل بنفس المحول لضمان الاتصال الشبكي.

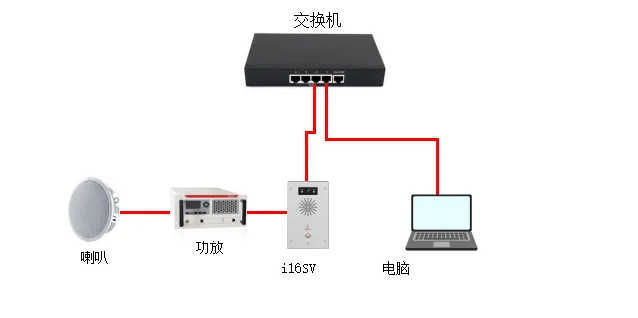

مخطط توصيل الجهاز والكمبيوتر

قم بتوصيل BHP‑SOS16V والكمبيوتر بنفس المحول. يظهر مخطط التوصيل في الشكل 1.
مخطط توصيل الجهاز والكمبيوتر

                  الشكل 1 مخطط توصيل الجهاز والكمبيوتر

التحكم في إخراج الصوت من المضخم

يمكن التحكم في إخراج المضخم إما عن طريق تمكين واجهة إخراج الصوت (Audio Out) أو باستخدام مرحل لتبديل طاقة المضخم. يتم شرح كلتا الطريقتين أدناه.

التحكم عبر واجهة إخراج الصوت (Audio Out)

تنطبق هذه الطريقة على: سلسلة BHP‑SOS10، سلسلة BHP‑SOS11، سلسلة BHP‑SOS16، BK‑ROIP‑PA2، PA2S، PA3. ملاحظة: تستخدم BK‑ROIP‑PA2/PA2S واجهة سماعة الرأس (Headset)؛ يستخدم PA3 مخرج الخط (Line Out). تتطلب سلسلة i10/i11 توصيل أسلاك مخصصة ثنائية الأطراف MX1.25. قم بالتكوين عبر واجهة الويب: (1) قم بتسجيل الدخول إلى واجهة الويب (اسم المستخدم/كلمة المرور الافتراضيان: admin).
(2) انتقل إلى إعدادات الاتصال الداخليإعدادات الوسائطإعدادات الوسائط.

  • قم بتعيين تمكين مكبر الصوت الخارجي إلى التحدث الحر ومخرج الخط.

  • قم بتعيين حالة تشغيل مخرج الخط إلى المتصل به في الاتصال الداخلي.

أوصاف المعاملات:

  • التحدث الحر ومخرج الخط: تمكين كل من صوت التحدث الحر وصوت مخرج الخط.

  • حالة تشغيل مخرج الخط:

    • الرنين: يتم التشغيل عند الرنين

    • المتصل (يتحدث): يتم التشغيل عند إجراء المكالمات

    • المتصل به عبر SIP (يتحدث): يتم التشغيل عند استقبال مكالمات SIP

    • المتصل به عبر البث المتعدد: يتم التشغيل عند استقبال بث متعدد

    • المتصل به في الاتصال الداخلي: يتم التشغيل عند استقبال مكالمات الاتصال الداخلي

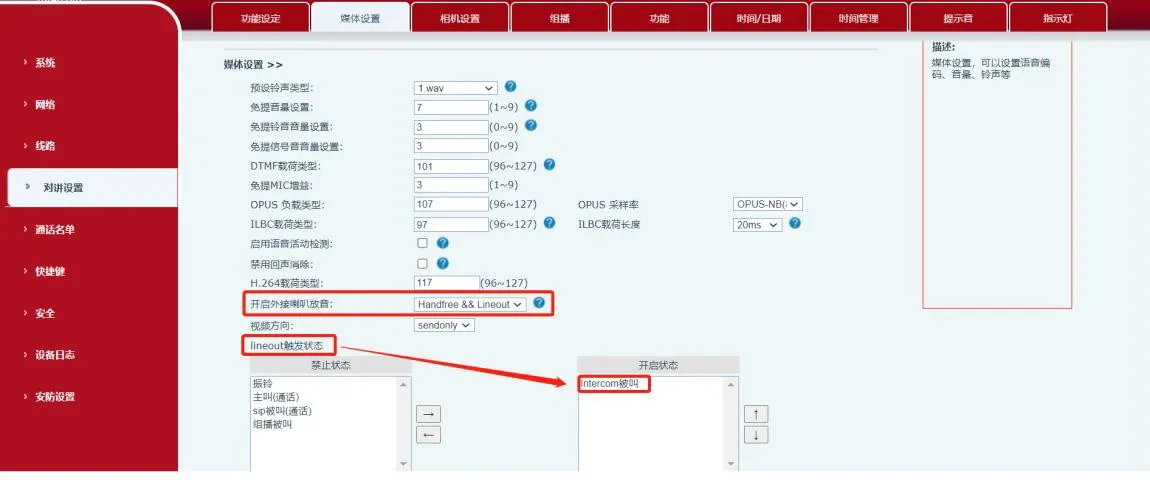

رسم تخطيطي للتحكم في إخراج الصوت

الشكل 2 رسم تخطيطي للتحكم في إخراج الصوت

التحكم عبر مخرج الترحيل (Relay Output)

تنطبق هذه الطريقة على جميع الطرازات المذكورة بما في ذلك BHP‑SOS12. (1) مواصفات منافذ الإخراج

الطرازBHP‑SOS12BHP‑SOS16/16VBHP‑SOS10/11V/PA2BK‑ROIP‑PA2S
منافذ الإخراج2211
التصنيفتيار مستمر 30 فولت/1 أمبير
تيار متردد 30 فولت/1 أمبير
تيار مستمر 30 فولت/2 أمبير
تيار متردد 125 فولت/0.5 أمبير
تيار مستمر 30 فولت/1 أمبير
تيار متردد 125 فولت/0.5 أمبير
تيار مستمر 30 فولت/1 أمبير
تيار متردد 125 فولت/0.5 أمبير

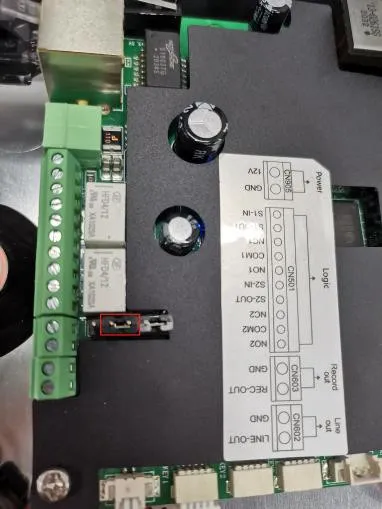

(2) توصيل المضخم (مثال على جهة اتصال جافة) ① بالنسبة لوضع الطاقة الخارجي لـ BHP‑SOS16V: قم بتوصيل الأطراف 2-3 من JP1، واترك الأطراف 1 و 4 غير متصلة، كما هو موضح في الشكل 3.
رسم تخطيطي لتوصيل الجسر

الشكل 3 رسم تخطيطي لتوصيل الجسر

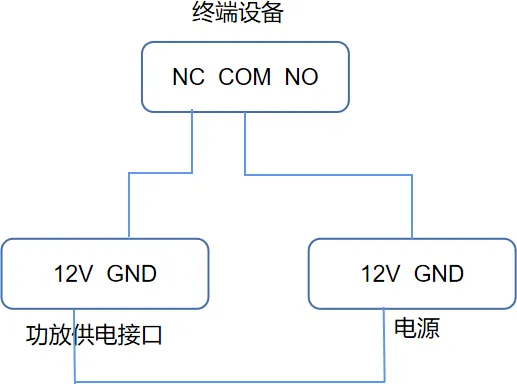

② التوصيل: - موجب الطاقة ← موجب المضخم - سالب الطاقة ← طرف COM الخاص بالجهاز - سالب المضخم ← طرف NC الخاص بالجهازرسم تخطيطي لتوصيل المضخم

الشكل 4 رسم تخطيطي لتوصيل المضخم

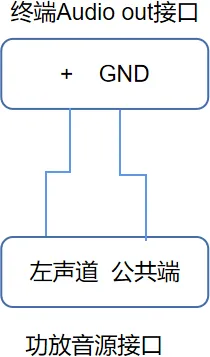

③ توصيل الصوت: - الصوت الأيسر للمضخم ← طرف خرج الصوت + للجهاز - GND الخاص بالمضخم ← طرف GND للجهازتوصيل إدخال الصوت

الشكل 5 توصيل إدخال الصوت

(3) تكوين منفذ الإخراج ① انتقل إلى إعدادات الأمانإعدادات منفذ الإخراج.
② حدد منفذ الإخراج 1 (أو 2).
③ حدد التشغيل حسب حالة المكالمة وقم بتمكين المتصل به في الاتصال الداخلي.

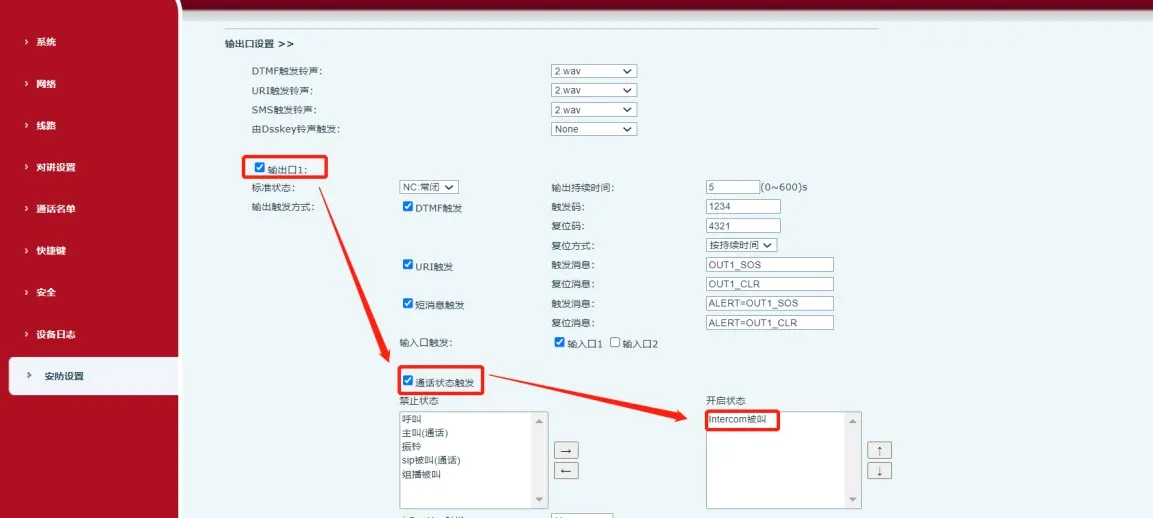

تكوين منفذ الإخراج

الشكل 6 تكوين منفذ الإخراج

عندما يتلقى الجهاز حدث المتصل به في الاتصال الداخلي، يتم إغلاق COM و NC، مما يؤدي إلى تشغيل المضخم.
