كيفية تنفيذ سرعة الطلب مع أزرار خارجية على منافذ الإدخال الداخلي ؟

مقدمة

نظرة عامة

عندما تكون الأزرار المدمجة في أجهزة الاتصال الداخلي غير كافية أو كانت هناك حاجة إلى وظائف خاصة، يمكن استخدام أزرار خارجية لتوسيع الوظائف. توفر هذه الوثيقة إرشادات مفصلة حول كيفية توصيل الأزرار الخارجية بأجهزة الاتصال الداخلي لوظيفة الاتصال السريع.

النماذج المتوافقة

BHP-SOS10, BHP-SOS10V, BHP-SOS10D, BHP-SOS11, BHP-SOS11V, BHP-SOS16V.

أدوات التحضير المسبقة

① جهاز واحد من سلسلة BHP-SOS10 الخاصة بنا (باستخدام BHP-SOS10 كمثال)، ومحول PoE واحد (أو مصدر طاقة DC). قم بتوصيل الجهاز بالمحول.
② كمبيوتر تصحيح أخطاء واحد متصل بنفس المحول لضمان الاتصال الشبكي بين الكمبيوتر والجهاز.

مخطط توصيل الجهاز والكمبيوتر

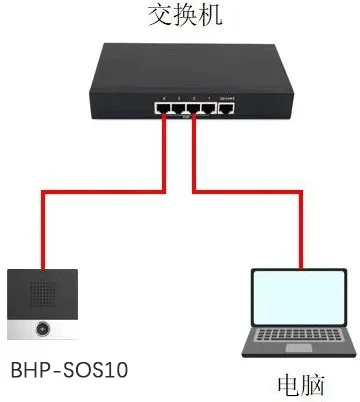

قم بتوصيل BHP-SOS10 بالمحول، وقم بتوصيل الكمبيوتر بنفس المحول لضمان الاتصال الشبكي بين الكمبيوتر والجهاز. يظهر مخطط التوصيل في الشكل 1.

49790cea-b8f5-4ad9-b8e9-43a4838b1d32 拷贝.webp

الشكل 1 مخطط توصيل الجهاز والكمبيوتر

الاتصال السريع عبر زر خارجي على منفذ الإدخال

لتنفيذ الاتصال السريع عبر منفذ الإدخال، تحتاج إلى توصيل زر بمنفذ الإدخال وتكوين الإعدادات على واجهة الويب الخاصة بالجهاز. يقدم هذا القسم إرشادات مفصلة للتكوين.

توصيل الزر الخارجي بمنفذ الإدخال

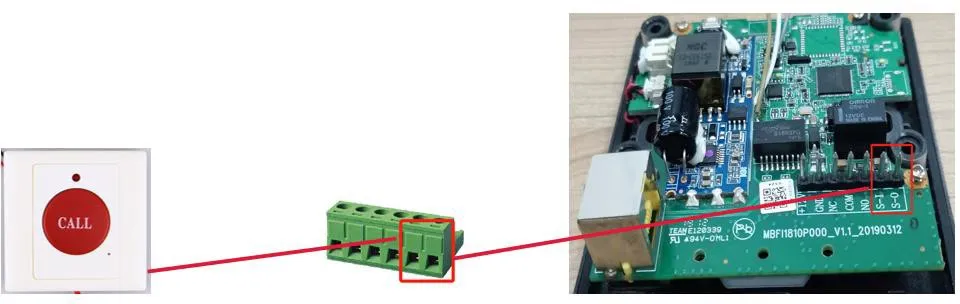

توصيل الزر الخارجي: استخدم كتلة طرفية على منفذ الإدخال الخاص بالجهاز وقم بتوصيل الزر بالطرف الطرفي لمنفذ الإدخال المقابل، كما هو موضح في الشكل 2 (باستخدام i10 كمثال):
رسم تخطيطي لتوصيل الزر الخارجي

                                                                                                                      الشكل 2 رسم تخطيطي لتوصيل الزر الخارجي

تكوين الاتصال السريع لمنفذ الإدخال

بعد توصيل الزر، تحتاج إلى تكوين الإعدادات على واجهة الويب الخاصة بالجهاز. خطوات التكوين التفصيلية هي كما يلي:
(1) قم بتسجيل الدخول إلى الجهاز: أدخل عنوان IP الخاص بالجهاز في متصفح، ثم أدخل اسم المستخدم وكلمة المرور لتسجيل الدخول (اسم المستخدم وكلمة المرور الافتراضيان هما admin)؛
(2) بعد تسجيل الدخول، انتقل إلى الاختصارات -- إعدادات الاختصار وقم بتكوينها كما هو موضح في الشكل 3؛
① النوع: حدد مفتاح الذاكرة (Memory Key)؛
② الاسم: مخصص؛
③ القيمة: أدخل عنوان IP للنظير أو حساب SIP (يُستخدم عنوان IP كمثال هنا)؛
④ النوع الفرعي: حدد اتصال سريع (Speed Dial)؛

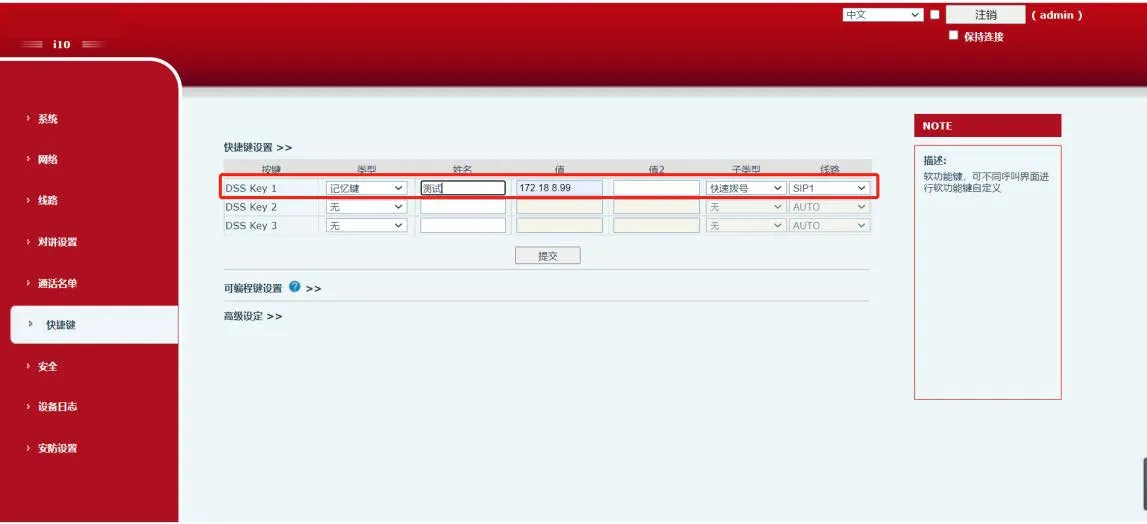

رسم تخطيطي لتكوين الاختصار

الشكل 3 رسم تخطيطي لتكوين الاختصار

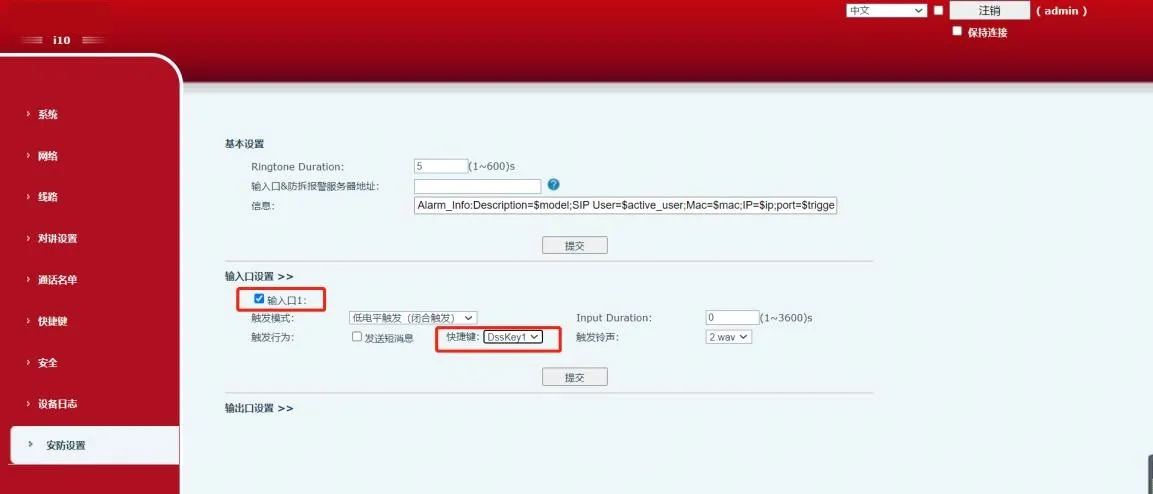

(3) بعد تكوين الاختصار، انتقل إلى إعدادات الأمان الخاصة بالجهاز -- إعدادات منفذ الإدخال، حدد الإدخال 1، واختر DssKey1 الذي تم تكوينه من القائمة المنسدلة للاختصارات. سيتم تنشيط وظيفة الاتصال السريع بعد التكوين، كما هو موضح في الشكل 4.
رسم تخطيطي لتكوين منفذ الإدخال

الشكل 4 رسم تخطيطي لتكوين منفذ الإدخال
