كيفية إعداد الفيديو التعشيق لأنظمة الاتصال الداخلي ؟

مقدمة

نظرة عامة

يمكن لأنظمة التحكم في الوصول / الاتصال الداخلي الارتباط بكاميرات IP تابعة لجهات خارجية على الشبكة المحلية. أثناء مكالمة مع الطرف البعيد، يمكن للطرف البعيد سماع الصوت من نظام التحكم في الوصول / الاتصال الداخلي ومشاهدة الفيديو من الكاميرا المرتبطة في نفس الوقت. تصف هذه الوثيقة كيفية ربط أجهزة التحكم في الوصول والاتصال الداخلي من Fanvil مع كاميرات IP تابعة لجهات خارجية.

النماذج المتوافقة

الاتصال الداخلي: Bi12؛ التحكم في الصوت عبر Fanvil: BHP-SOS20، BHP-SOS23؛ بوابة Fanvil: BK-DAB-PA2؛ هاتف فيديو مساعد: BF600S

أدوات التحضير المسبقة

1. جهاز اتصال داخلي Bi12 واحد، وهاتف فيديو BF600S واحد، وكاميرا IP واحدة، جميعها متصلة بمحول PoE لضمان الاتصال الشبكي الطبيعي
2. كمبيوتر تصحيح أخطاء واحد مع اتصال شبكي بجميع الأجهزة الأخرى

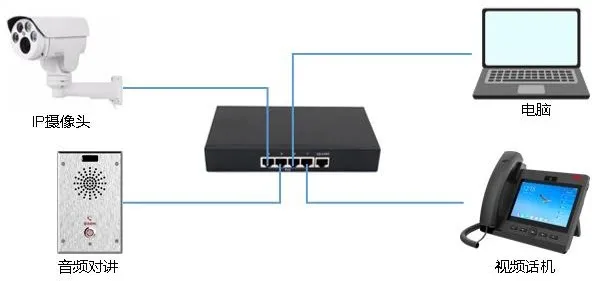

مخطط توصيل الجهاز والكمبيوتر

مخطط توصيل الجهاز والكمبيوتر

تأكيد معلومات الكاميرا وتكوينها

تكوين IP للكاميرا

في سيناريو التطبيق هذا، يجب تكوين كاميرا IP بعنوان IP ثابت. للحصول على طرق تكوين محددة، استشر الشركة المصنعة للكاميرا. هنا نأخذ كاميرات Hikvision كمثال:

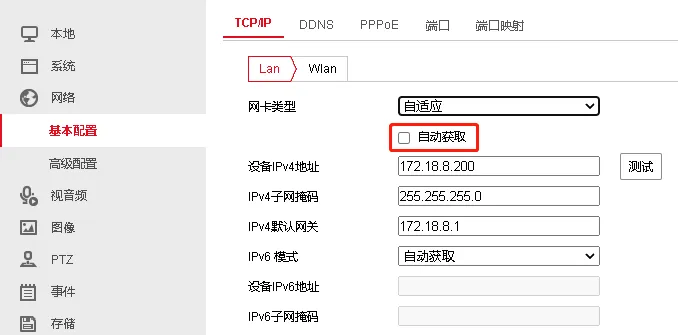

تكوين IP للكاميرا

قم بإلغاء تحديد خيار “الحصول تلقائيًا” وأدخل عنوان IP يدويًا

تدفق فيديو الكاميرا

مواصفات الفيديو المدعومة لهاتف الفيديو BF600S هي: ترميز H264، دقة 1080P أو أقل؛ يوصى بدقة 720P أو أقل. لذلك، تحتاج إلى تأكيد التدفق والدقة التي تستخدمها الكاميرا. بأخذ كاميرات Hikvision كمثال:

  • تأكد مما إذا كان التدفق المستخدم هو التدفق الرئيسي أم الثانوي أم الثالث

  • تأكد من أن نوع الترميز هو H264

  • تأكد من أن دقة التدفق أقل من أو تساوي الدقة التي يدعمها هاتف الفيديو. في هذا المثال، يتم استخدام دقة فيديو 720P كما هو موصى به

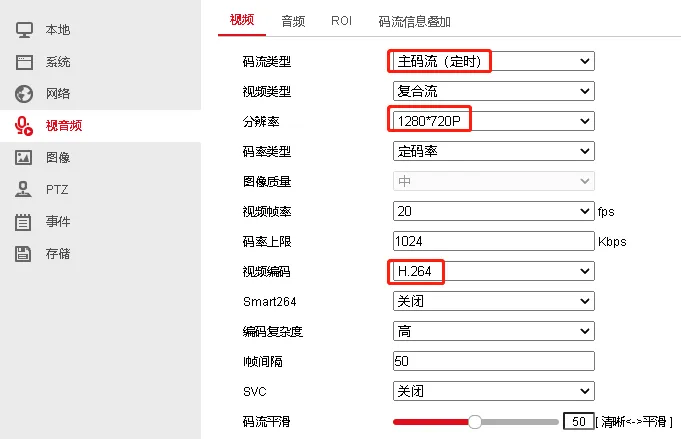

تكوين تدفق فيديو الكاميرا
ملاحظة: تدعم بعض هواتف الفيديو فقط H264 و Base Profile ودقة VGA. في هذه الحالة، اضبط تكوين الكاميرا وفقًا لذلك. يتوافق Base Profile مع إعداد تعقيد الترميز المنخفض في كاميرات Hikvision

تأكيد عنوان URL لـ RTSP للكاميرا

عند تكوين الاتصال الصوتي للارتباط بكاميرا، يستخدم الاتصال الداخلي عنوان URL لـ RTSP الخاص بالكاميرا لاسترداد تدفق الفيديو. يختلف تنسيق عنوان URL لـ RTSP باختلاف الشركة المصنعة، لذلك تحتاج إلى استشارة الشركة المصنعة للكاميرا للحصول على عنوان RTSP الصحيح. بأخذ كاميرات Hikvision كمثال، عنوان URL لـ RTSP هو:
rtsp://admin:Fangwei123@172.18.8.200:554/ISAPI/streaming/channels/101
حيث:

  • Rtsp هو رأس URL يشير إلى عنوان URL لـ RTSP

  • admin:Fangwei123 هما اسم المستخدم وكلمة المرور للوصول إلى عنوان URL لـ RTSP، وعادة ما يكونان نفس بيانات اعتماد تسجيل الدخول إلى الويب الخاصة بالكاميرا

  • عنوان IP والمنفذ هما عنوان وصول الكاميرا ومنفذ RTSP

  • 101 يشير إلى التدفق الرئيسي، 102 يشير إلى التدفق الثانوي، 103 يشير إلى التدفق الثالث

يتم توفير قائمة عناوين URL لـ RTSP للشركات المصنعة للكاميرات الشائعة في القسم 4

تكوين الاتصال الداخلي

تكوين الكاميرا المرتبطة

لأجهزة الاتصال الداخلي والعناوين العامة (PA): انتقل إلى الويبإعدادات الاتصال الداخليإعدادات الفيديو.
لأجهزة التحكم في الوصول: انتقل إلى الويبإعدادات التحكم في الوصولإعدادات الفيديو.
بالنسبة للكاميرات المتوافقة مسبقًا، قم بالتكوين على النحو التالي:

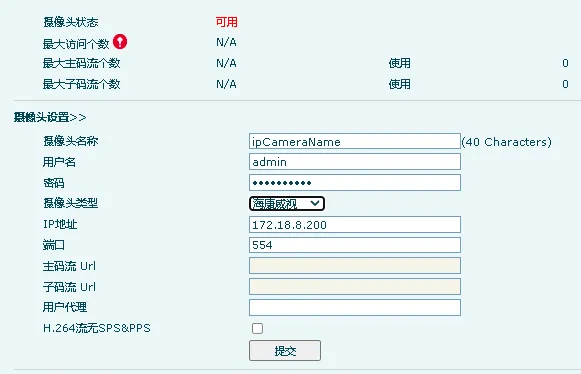

إعدادات فيديو الجهاز

اسم المستخدم: اسم المستخدم للوصول إلى تدفق RTSP (نفس اسم مستخدم الويب الخاص بالكاميرا)
كلمة المرور: كلمة المرور للوصول إلى تدفق RTSP (نفس كلمة مرور الويب الخاصة بالكاميرا)
حدد نوع الكاميرا
عنوان IP: عنوان IP للكاميرا
المنفذ: منفذ RTSP للكاميرا
إذا لم تكن الكاميرا المرتبطة في قائمة الأنواع، فحدد مخصص وأدخل عنوان URL لتدفق RTSP. أمثلة على التنسيقات:
التدفق الرئيسي: rtsp://admin:Fangwei123@172.18.8.200:554/ISAPI/streaming/channels/101
التدفق الثانوي: rtsp://admin:Fangwei123@172.18.8.200:554/ISAPI/streaming/channels/102

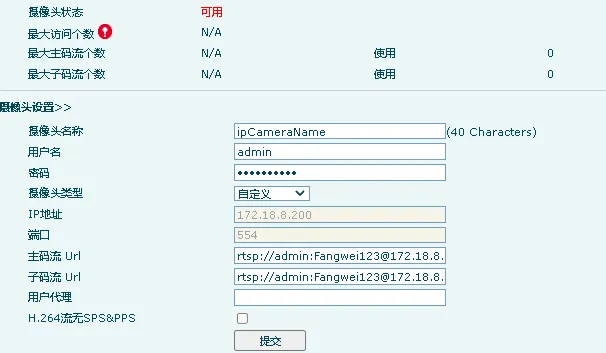

تكوين منفذ الكاميرا

تكوين اختصار الاتصال السريع

تُستخدم الاختصارات لإجراء مكالمة بلمسة واحدة من نظام التحكم في الوصول / الاتصال الداخلي إلى هاتف الفيديو IP. التكوين مطلوب قبل الاستخدام.

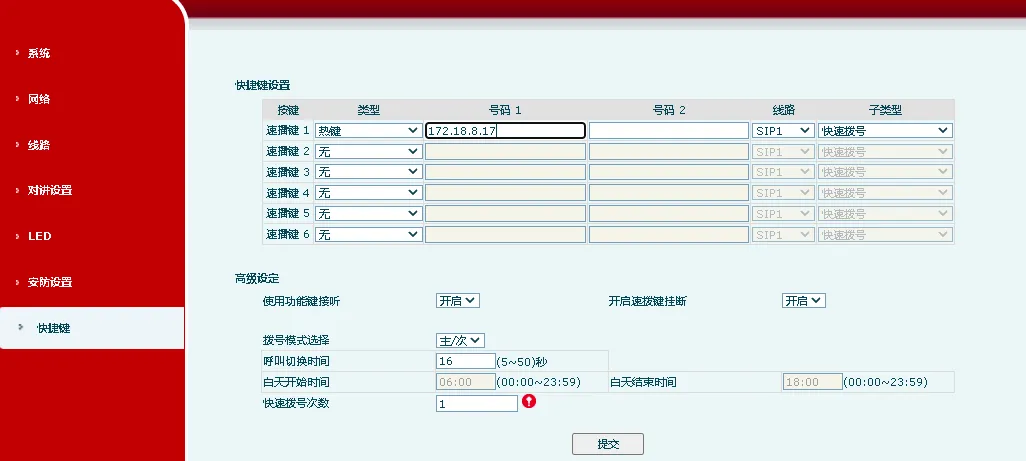

تكوين اختصار الاتصال السريع
نوع الاختصار: مفتاح ساخن
الرقم 1: الرقم الذي سيتم الاتصال به أو عنوان IP
النوع الفرعي: اتصال سريع
لمزيد من التكوينات المتعلقة بالمكالمات، راجع وثائق أخرى.

عناوين URL لـ RTSP للشركات المصنعة للكاميرات الشائعة

كاميرات Hikvision:
التدفق الرئيسي: rtsp://admin:Fangwei123@172.18.8.200:554/ISAPI/streaming/channels/101
التدفق الثانوي: rtsp://admin:Fangwei123@172.18.8.200:554/ISAPI/streaming/channels/102
حيث: admin:Fangwei123 هما اسم المستخدم وكلمة المرور؛ 101 = التدفق الرئيسي، 102 = التدفق الثانوي، 103 = التدفق الثالث
كاميرات Dahua:
التدفق الرئيسي: rtsp://username:password@ip:port/cam/realmonitor?channel=1&subtype=0
التدفق الثانوي: rtsp://username:password@ip:port/cam/realmonitor?channel=1&subtype=1
حيث: username:password هما بيانات الاعتماد مفصولة بنقطتين؛ subtype=0 = التدفق الرئيسي، subtype=1 = التدفق الثانوي
كاميرات XiongMai:
التدفق الرئيسي: rtsp://10.6.3.57:554/user=admin&password=&channel=1&stream=0.sdp?
التدفق الثانوي: rtsp://10.6.3.57:554/user=admin&password=&channel=1&stream=1.sdp?
