نظام الهاتف الصناعي الصوت الاختبار الذاتي وظيفة مقدمة

مقدمة

نظرة عامة

يصف هذا المستند وظيفة الاختبار الذاتي للصوت (الاختبار الذاتي للصدى) لأجهزة الاتصال الداخلي الصناعية وأجهزة هاتف الأبواب. تقوم الوظيفة باختبار مكبر الصوت والميكروفون عن طريق تشغيل صوت اختبار عبر مكبر الصوت والتقاطه عبر الميكروفون، مما يتيح التشخيص عن بعد لمكونات الصوت.

الطرازات المطبقة

BHP-SOS12, BHP-SOS11, BHP-SOS16V, BHP-SOS18, Bi20S, Bi30, Bi32V, Bi33V, BHP-SOS10V, BK-DAB-PA3, BK-DAB-PA2S

كيفية عمل الاختبار الذاتي للصوت

يقوم الجهاز بتشغيل نغمة اختبار عبر مكبر الصوت، ثم يسجل الصوت عبر الميكروفون. ويقوم بقياس نسبة الصوت المستلم: - فوق الحد المحدد = نجاح الاختبار - تحت الحد المحدد = فشل الاختبار

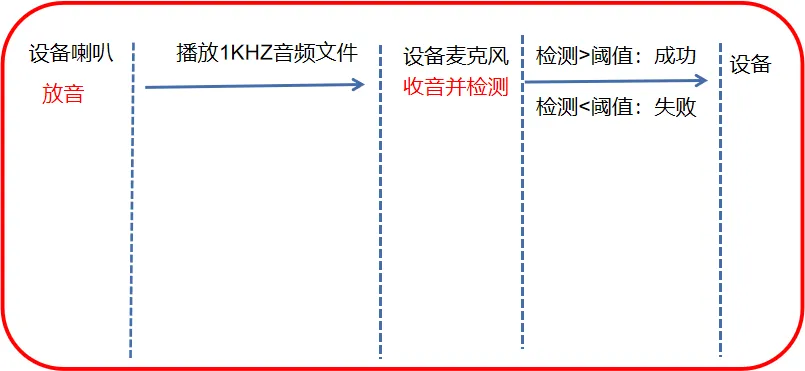

مخطط الاختبار الذاتي للصوت

الشكل 1 مخطط الاختبار الذاتي للصوت

سيناريوهات التطبيق

يُستخدم لفحص المعدات عن بعد، خاصة عند فقدان أو انقطاع صوت البث. يقلل من تكاليف الصيانة الميدانية ويحسن الكفاءة.

المتطلبات الأساسية والأدوات

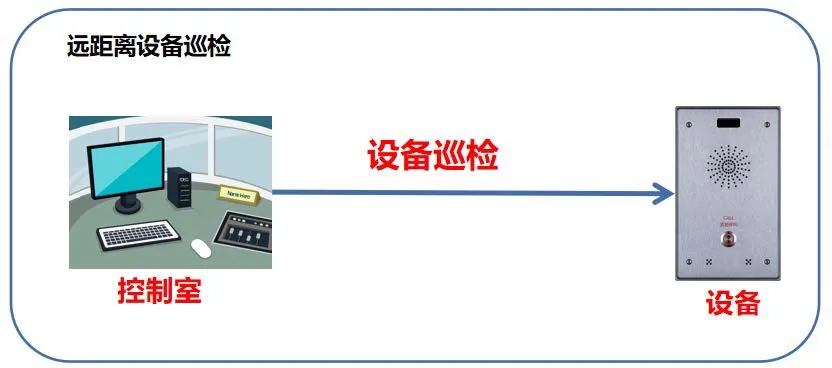

مشهد الاختبار الذاتي للصوت

الشكل 2 مشهد الاختبار الذاتي للصوت

  1. جهاز اتصال داخلي صناعي واحد (مثل BHP-SOS12)، مبدل PoE، خادم Keneng

  2. حاسوب تكوين متصل بنفس الشبكة المحلية (LAN)

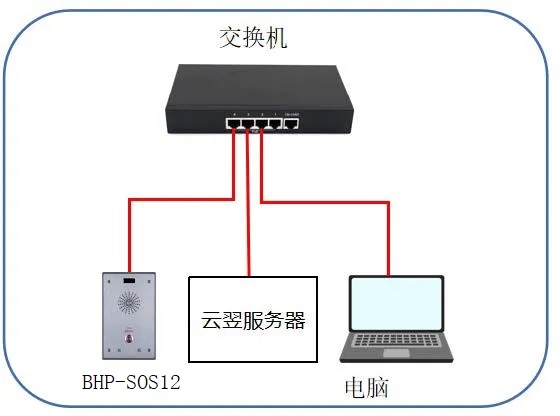

مخطط توصيل الجهاز والحاسوب

مخطط توصيل الجهاز والحاسوب

الشكل 3 مخطط توصيل الجهاز والحاسوب

دليل التشغيل

تتوفر أربعة طرق للاختبار الذاتي للصدى:

1. طريقة URI النشط

التشغيل عبر طلب HTTP GET من وحدة تحكم عن بعد.

الصيغة: http://device-ip/cgi-bin/ConfigManApp.com?key=ECHO_TEST

النتيجة:
- النجاح: مكبر الصوت والميكروفون يعملان بشكل طبيعي
- الفشل: فصل مكبر الصوت/الميكروفون أو عبهما

مثال: http://172.18.8.15/cgi-bin/ConfigManApp.com?key=ECHO_TEST

الاختبار الذاتي للصوت عبر URI النشط

الشكل 4 الاختبار الذاتي للصوت عبر URI النشط

2. طريقة HTTP API

واجهة برمجة تطبيقات قائمة على XML للتكامل مع الأطراف الثالثة.

عنوان الطلب (URL): http://device-ip/xmlservice (POST)

طلب XML:



URI="cmd:echo_test"

استجابة XML:



URI="cmd:echo_test"
0

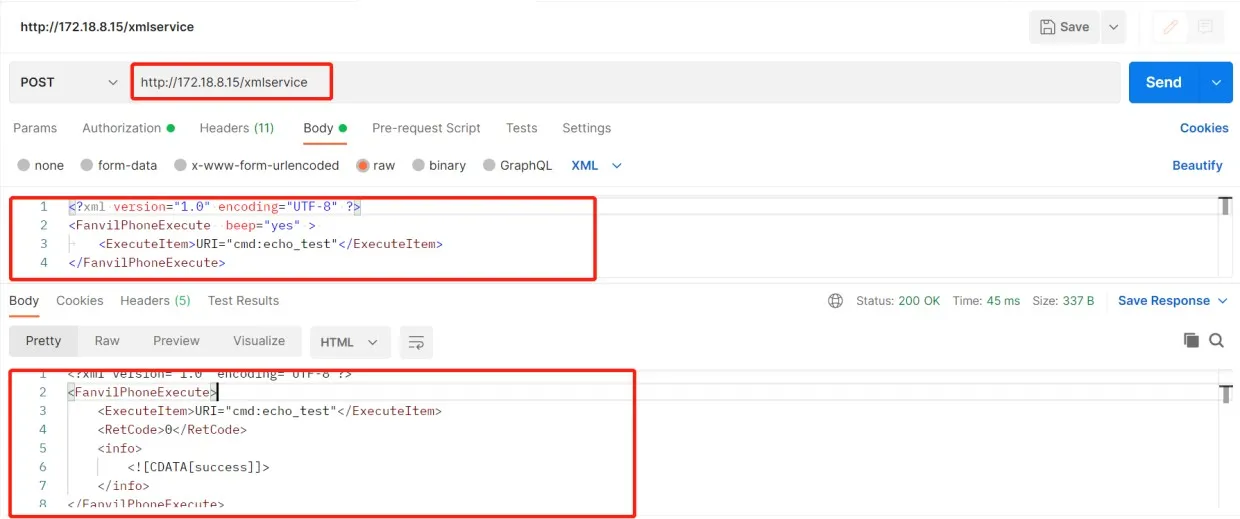

الاختبار الذاتي للصوت عبر HTTP API

الشكل 5 الاختبار الذاتي للصوت عبر HTTP API

3. طريقة الخطة الزمنية

جدولة الاختبار الذاتي التلقائي وإبلاغ النتائج عبر عنوان الإجراء (Action URL).

  1. تسجيل الدخول إلى واجهة الويب → الاتصال الداخلي → الخطة الزمنية → قاعدة الخطة الزمنية

  2. نوع الإجراء: الاختبار الذاتي للصوت

  3. ضبط وقت التنفيذ

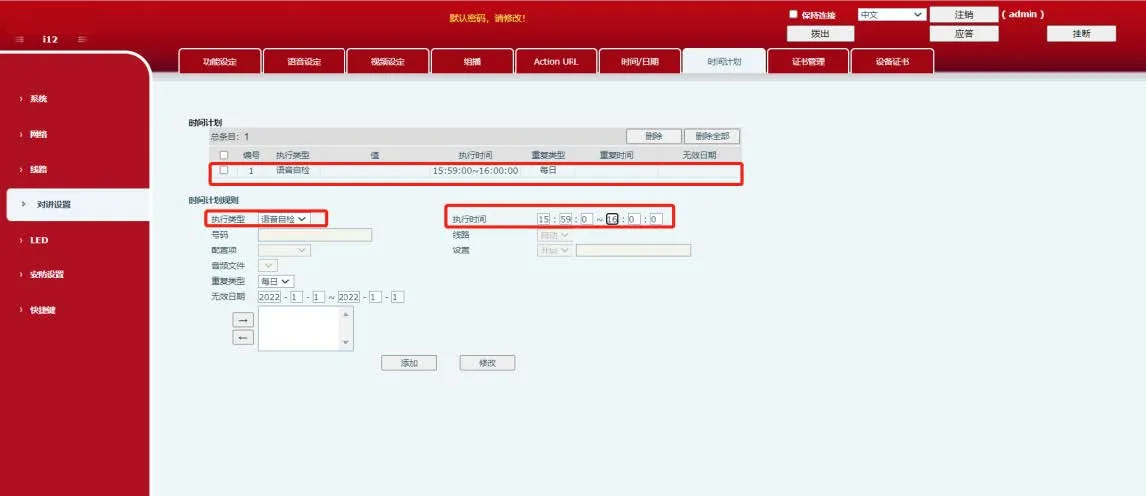

الاختبار الذاتي للصوت عبر الخطة الزمنية

الشكل 6 الاختبار الذاتي للصوت عبر الخطة الزمنية

4. طريقة رسالة SIP

تشغيل الاختبار الذاتي عبر خادم SIP في بيئات الشبكات العامة.

  1. يقوم الجهاز بتسجيل حساب SIP على الخادم

  2. إنشاء مهمة اختبار ذاتي على خادم Keneng

  3. تشغيل المهمة: عرض النجاح/الفشل على الخادم

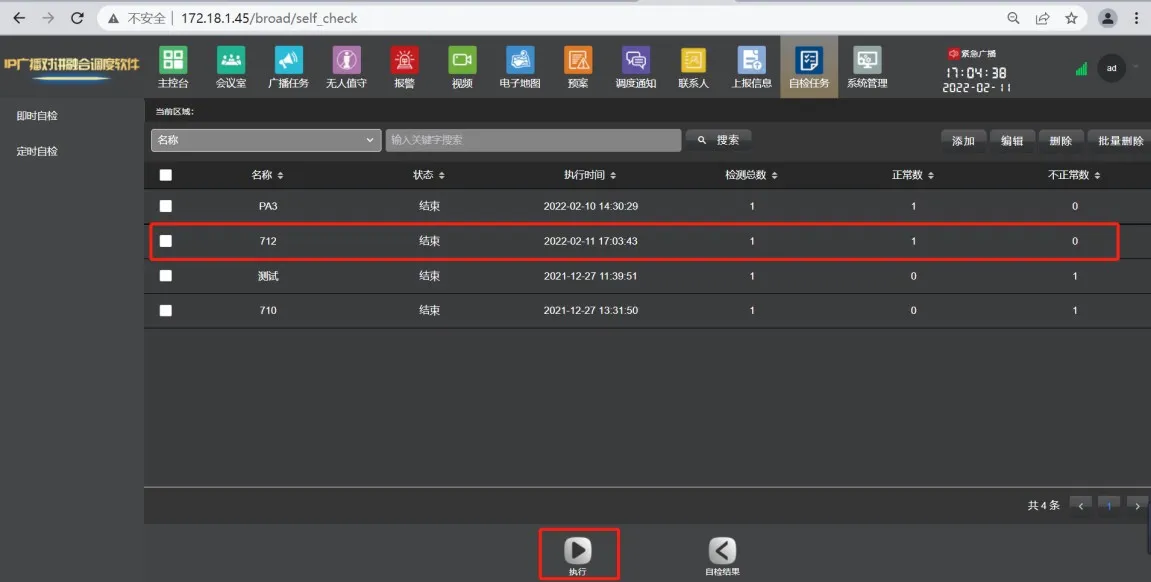

الاختبار الذاتي للصوت عبر رسالة SIP

الشكل 7 الاختبار الذاتي للصوت عبر رسالة SIP

التحقق من خلال التقاط الحزم:

  1. واجهة الويب → النظام → الأدوات → التقاط الحزم → بدء

  2. تشغيل الاختبار الذاتي → إيقاف التقاط الحزم

  3. فتح الملف في برنامج Wireshark → تصفية sip

  4. التحقق من نص الرسالة (MESSAGE body): Success / Fail

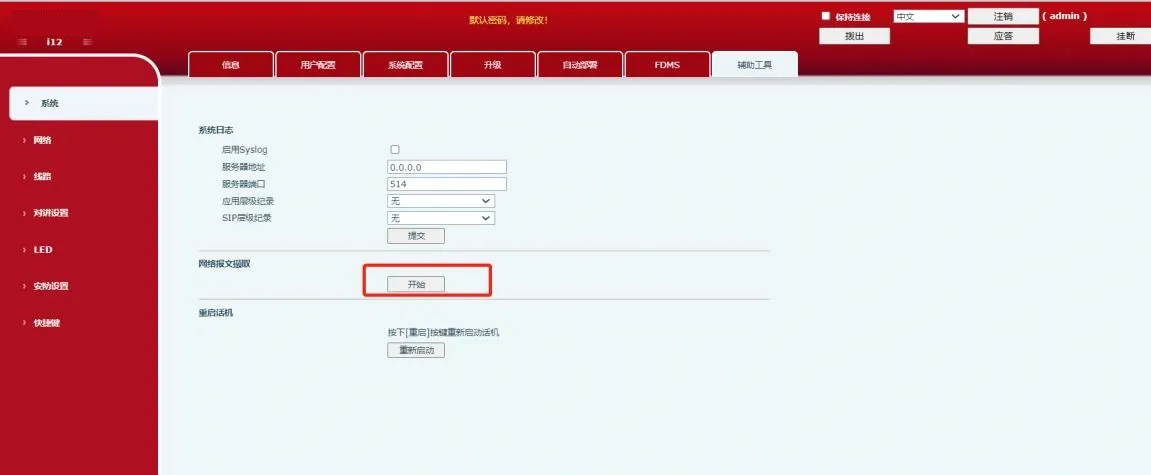

التقاط حزم الجهاز

الشكل 8 التقاط حزم الجهاز

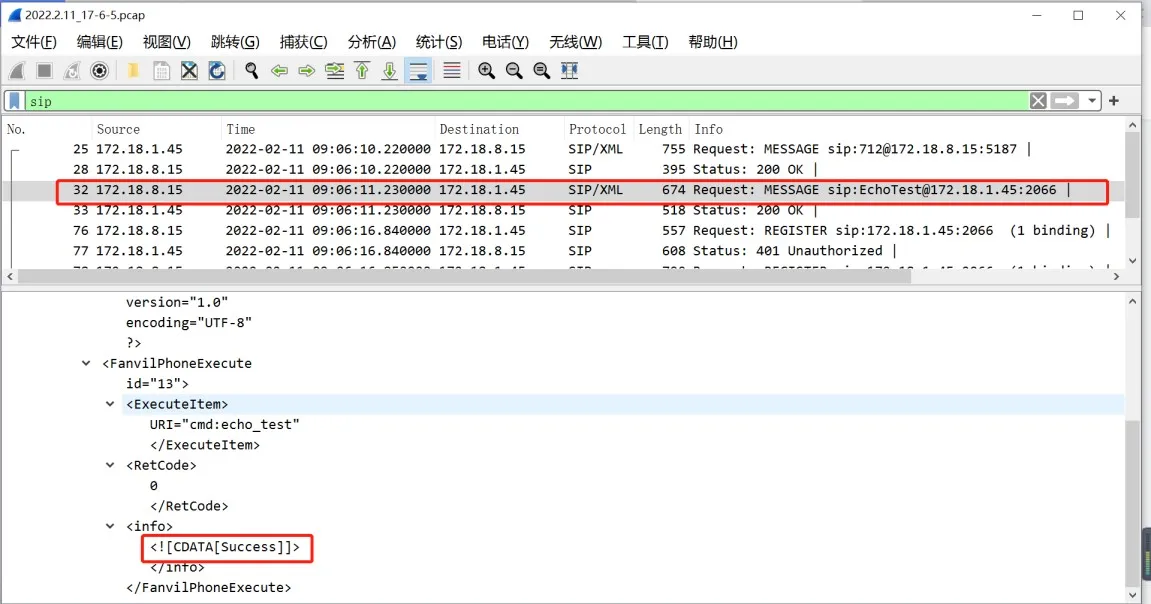

التحقق من النتيجة عبر التقاط الحزم

الشكل 9 التحقق من النتيجة عبر التقاط الحزم

تصليح الأعطال: فشل الاختبار الذاتي

  1. التحقق من الاتصالات

    • فصل مكبر الصوت = فشل الاختبار

    • فصل الميكروفون = فشل الاختبار دائمًا

  2. التحقق من المكونات

    • التحقق من عدم تلف مكبر الصوت والميكروفون

    • الاتصال بالدعم الفني إذا كانت المكونات سليمة ولكن الاختبار فشل

  3. التحقق من البيئة

    • يستخدم الاختبار نغمة تردد 1 كيلوهرتز

    • قد تسبب ضوضاء بيئية بتردد 1 كيلوهرتز نتائج نجاح خاطئة

    • إجراء الاختبار في بيئة هادئة
