الصناعية SIP الهاتف تكوين uaCSTA ودليل المستخدم

مقدمة

نظرة عامة

uaCSTA هو معيار CTI تم تطويره من قبل ECMA، ومستمد من معيار CSTA، ويستند إلى بروتوكول SIP ولغة XML.

الجمهور المستهدف

يهدف هذا المستند إلى العملاء أو المختبرين الذين يرغبون في فهم تطبيقات uaCSTA بسرعة.

المصطلحات

  • uaCSTA: تطبيقات الاتصالات المدعومة بالحاسوب لوكيل المستخدم (User Agent Computer Supported Telecommunications Applications)

  • CSTA: تطبيقات الاتصالات المدعومة بالحاسوب (Computer Supported Telecommunications Applications)

  • ECMA: الرابطة الأوروبية لمصنعي الحواسيب (European Computer Manufacturers Association)

أوضاع الاتصال uaCSTA

يستخدم uaCSTA بروتوكول SIP لتمكين الاتصال عن بعد لـ CTI وإدارة هواتف SIP:

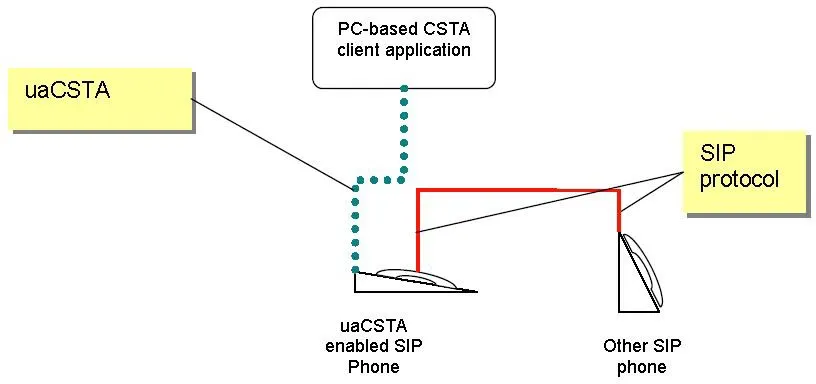

مخطط وضع الاتصال uaCSTA

الشكل 2.1

أو

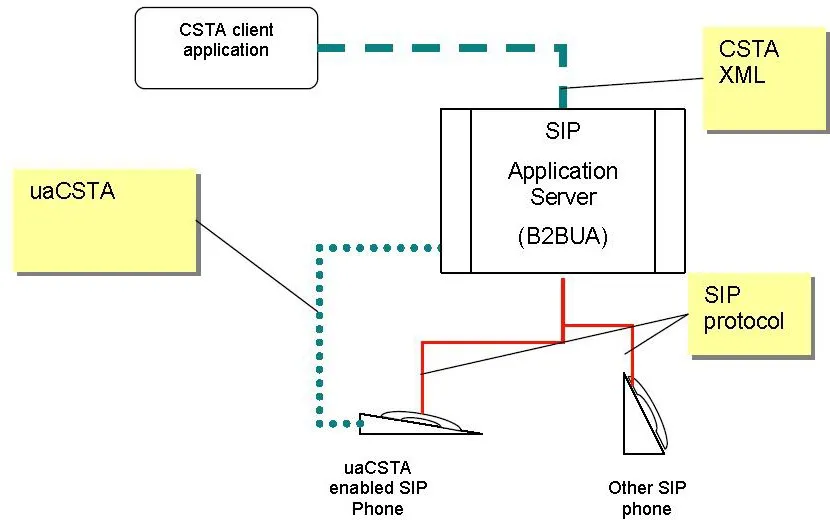

مخطط وضع الاتصال uaCSTA

الشكل 2.2

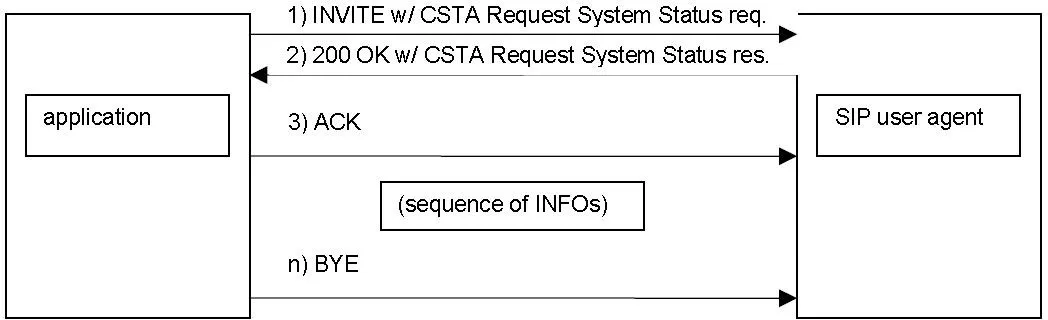

يقوم خادم uaCSTA وهاتف SIP بإنشاء اتصال عبر رسائل SIP INVITE وتبادل معلومات التحكم من خلال رسائل INFO:

هيكل اتصال الرسائل بين خادم uaCSTA وهاتف SIP

الشكل 2.3

أدخل رقم الخط الذي سيتم التحكم فيه بواسطة uaCSTA؛ يقوم الرقم المدخل بربط هذا الخط. (بالنسبة لخوادم 3CX، يستخدم uaCSTA نفس الخط المستخدم لتسجيل حساب المكالمة.)

هيكل الربط بين خادم uaCSTA وهاتف SIP

الشكل 2.4

إرشادات التكوين

تكوين واجهة الويب

مخطط تكوين الخط في الويب

الشكل 3.1

أدخل رقم الخط الذي سيتم التحكم فيه بواسطة uaCSTA؛ يقوم الرقم المدخل بربط هذا الخط. (بالنسبة لخوادم 3CX، يستخدم uaCSTA نفس الخط المستخدم لتسجيل حساب المكالمة.)

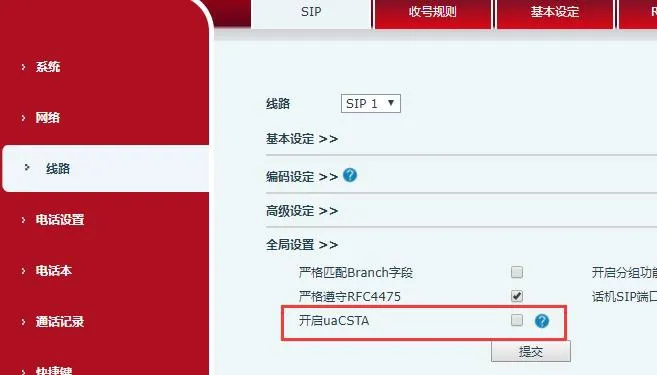

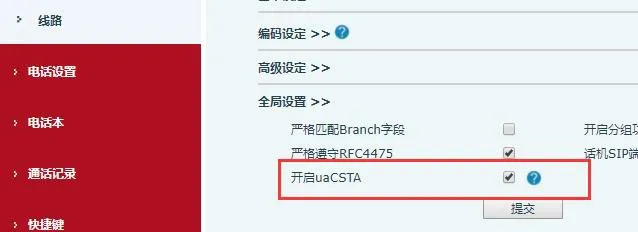

إعدادات الخط - تفعيل uaCSTA

الشكل 3.2

استخدم المفتاح لتفعيل أو تعطيل ميزة uaCSTA.

معلمات التكوين بتنسيق TXT


CSTA Enable: 0
0 = تفعيل uaCSTA؛ 1 = تعطيل uaCSTA
SIP1 CSTA Number: الرقم المسجل للمكالمات العادية

معلمات التكوين بتنسيق النقاط

sip.CSTAEnabled
sip.line.1.CSTANumber

إرشادات الاستخدام

خطوات التكوين

إعدادات الخط - تفعيل uaCSTA

الشكل 4.1

تفعيل uaCSTA

تفعيل uaCSTA واختيار نوع الخادم 3CX

الشكل 4.2

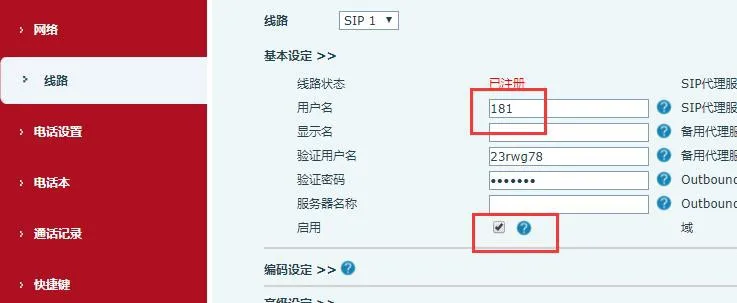

أدخل الرقم المسجل في حقل رقم uaCSTA واختر 3CX كنوع الخادم.

إدخال الرقم المسجل في حقل رقم uaCSTA

الشكل 4.3

التقاط الحزم

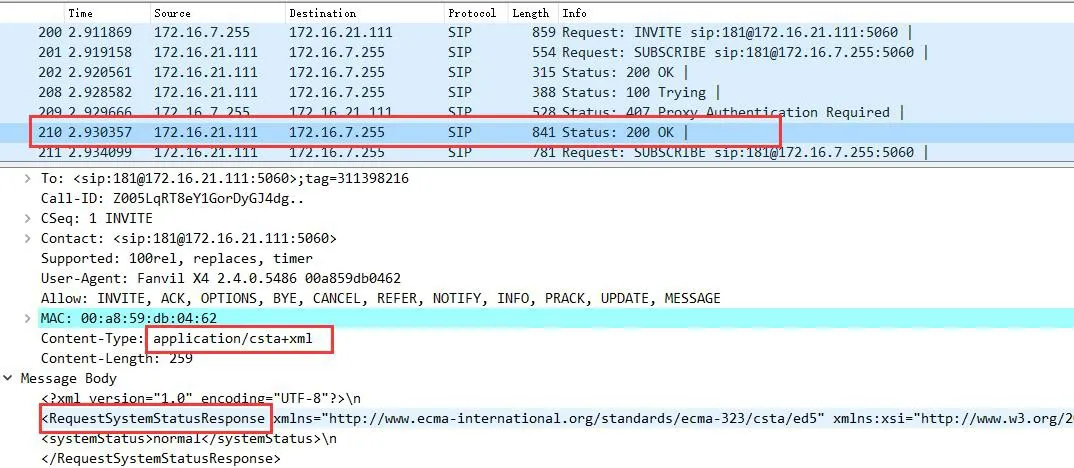

واجهة التقاط الحزم

الشكل 4.4

بعد التسجيل بنجاح، يرسل الخادم طلب INVITE لإنشاء اتصال uaCSTA مع الهاتف.

يقوم الخادم بإنشاء اتصال uaCSTA مع الهاتف

الشكل 4.5

يرد الهاتف برسالة 200 OK، ويتم إنشاء الاتصال.

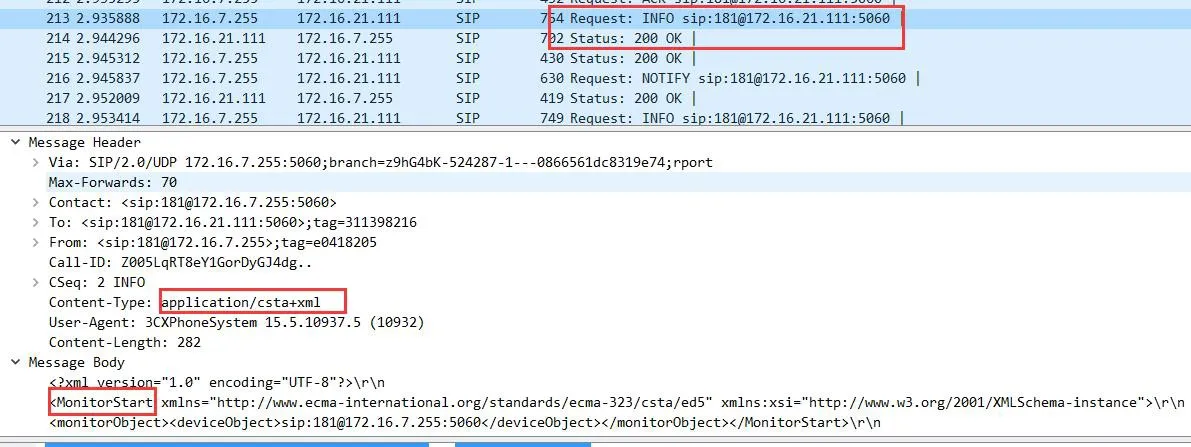

يرد الهاتف برسالة 200 OK، تم إنشاء الاتصال

الشكل 4.6

يرسل الخادم أمر MonitorStart لبدء المراقبة، ويرد الهاتف برسالة 200 OK. يتم جميع تبادل المعلومات بين خادم uaCSTA والهاتف عبر حزم INFO.

استخدام العميل

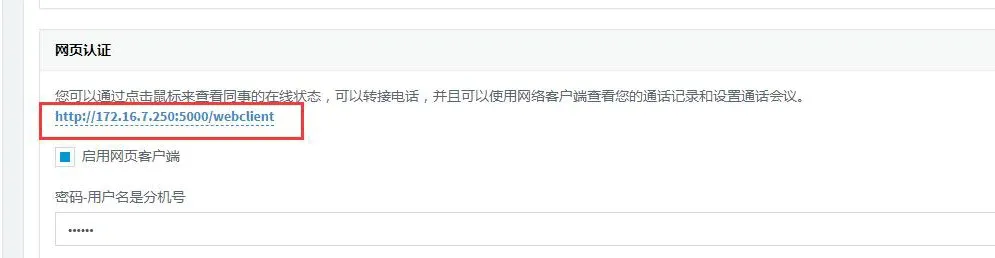

تسجيل دخول العميل: ابحث عن الحساب المسجل تحت امتداد الخادم. يوجد رابط مصادقة ويب؛ انقر عليه لتسجيل الدخول إلى العميل.

واجهة تسجيل دخول العميل

الشكل 4.7

أدخل رقم الامتداد وكلمة المرور في واجهة تسجيل الدخول.

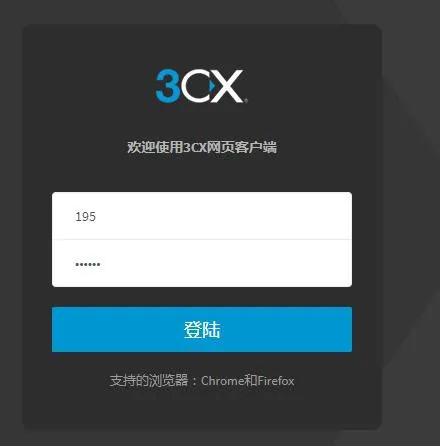

واجهة تسجيل الدخول

الشكل 4.8

ضبط الحالة


واجهة ضبط حالة الحساب

الشكل 4.9

إجراء المكالمات

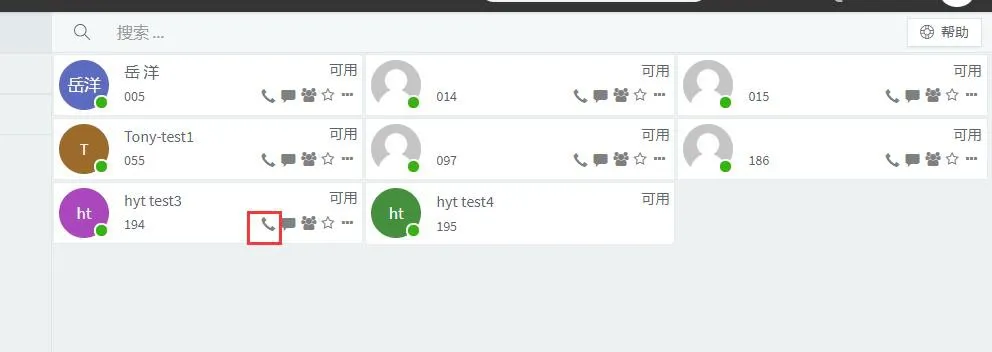

واجهة المكالمة

الشكل 4.10

عمليات المكالمة

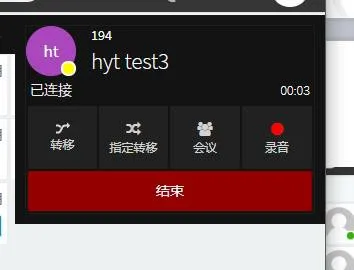

واجهة عمليات المكالمة

الشكل 4.11
