SIP فيديو باب الهاتف لقطة وظيفة مقدمة

مقدمة

نظرة عامة

تصف هذه الوثيقة وظيفة التقاط الصور (snapshot) لهواتف وفيديو وأجهزة الاتصال الداخلي SIP. تقوم وظيفة التقاط الصور بالتقاط صور من الكاميرا عند تشغيل الجهاز بواسطة أحداث معينة، ثم تحميل الصور إلى خادم محدد. الخوادم المدعومة: HTTP/HTTPS، FTP، TFTP. المشغلات المدعومة: الاتصال، الرنين، الرد، فتح الباب، إلخ.

النماذج المتوافقة

هواتف الفيديو للباب: Bi30, Bi31S, Bi32V, Bi33V
أجهزة الاتصال الداخلي بالفيديو: BK-DAB-PA2 + كاميرا PA KIT، BK-DAB-PA2S + كاميرا PA2 KIT، BHP-SOS10, BHP-SOS10V, BHP-SOS16, BHP-SOS16V, BHP-SOS18

كيف تعمل وظيفة التقاط الصور

تلتقط وظيفة التقاط الصور الصور عند حدوث مشغلات محددة مسبقًا وتقوم بتحميلها إلى خادم للتخزين. تتضمن جزأين أساسيين:

  1. مشغلات التقاط الصور: إجراء مكالمة، رنين وارد، رد على المكالمة، تشغيل الإدخال (الاتصال الداخلي)، تشغيل الإخراج (الاتصال الداخلي)، فتح الباب (هاتف الباب)

  2. تحميل الصورة: يدعم خوادم HTTPS، HTTP، FTP، TFTP

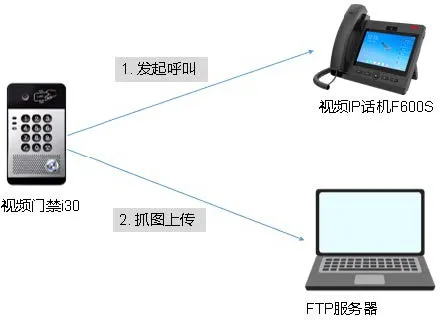

مخطط تدفق التقاط الصور

سيناريوهات التطبيق

مناسبة للمشاهد التي تحتاج إلى حفظ صور الأحداث، مثل مراقبة دخول الدراجات الكهربائية إلى المصعد.

المتطلبات الأساسية

  1. تجهيز هاتف باب فيديو Bi30 واحد + هاتف فيديو BF600S واحد، متصلين بمحول ولديهما عناوين IP صالحة

  2. تجهيز كمبيوتر تكوين مثبت عليه برنامج خادم، ومتصل بنفس الشبكة المحلية للأجهزة

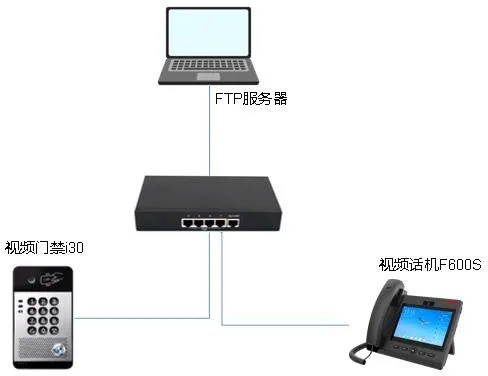

مخطط التوصيل

باستخدام هاتف الباب بالفيديو Bi30 كمثال:

مخطط توصيل الأجهزة

دليل التشغيل

لاستخدام وظيفة التقاط الصور، تحتاج إلى إعداد خادم وتكوين هاتف الباب. يستخدم هذا الدليل Bi30 + WFTPD (خادم FTP) كمثال.

تحضير الخادم (WFTPD)

قم بتنزيل WFTPD (لا يتطلب تثبيت).

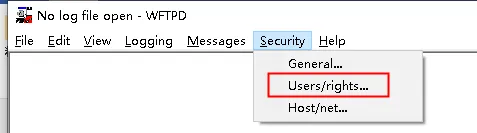

  1. افتح البرنامج ← انقر على الأمان – المستخدم / الصلاحيات

فتح البرنامج

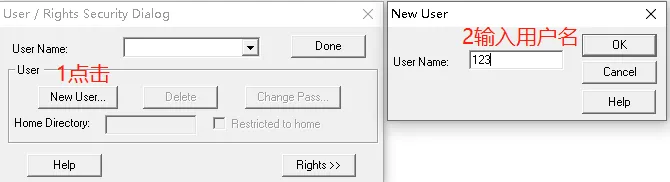

  1. انقر على مستخدم جديد ← أدخل اسم المستخدم (على سبيل المثال، 123) ← موافق

إنشاء مستخدم جديد

  1. أدخل كلمة المرور (على سبيل المثال، 123) ← موافق

أدخل كلمة المرور

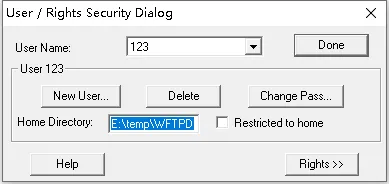

  1. عيّن دليل FTP الجذر (على سبيل المثال، E:\temp\WFTPD) ← الصقه في الدليل الرئيسي

تعيين دليل FTP الجذر

تكوين الجهاز

قم بتسجيل الدخول إلى واجهة الويب الخاصة بالجهاز لتعيين مشغلات التقاط الصور وعنوان URL للتحميل.

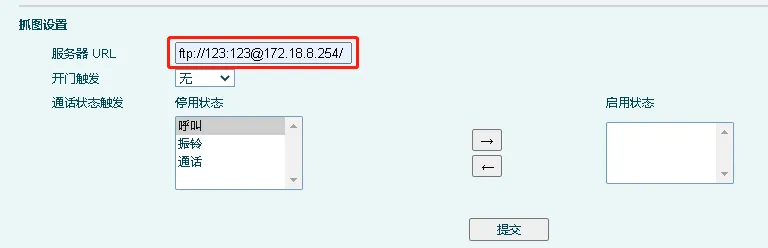

تعيين مشغل التقاط الصور وعنوان URL للتحميل

مثال على تنسيق URL:
ftp://123:123@172.18.8.254/
- ftp: نوع البروتوكول
- 123:123: اسم المستخدم:كلمة المرور
- 172.18.8.254: عنوان IP للخادم
- /: حفظ في الدليل الجذر؛ استخدم /snap/ لمجلد فرعي

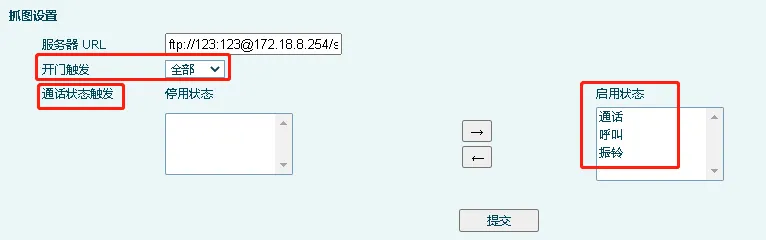

تعيين شروط التشغيل (هاتف الباب):

إعدادات تشغيل هاتف الباب

أي مشغل تم تمكينه سيقوم بالتقاط صورة وتحميلها (على سبيل المثال، فتح الباب).

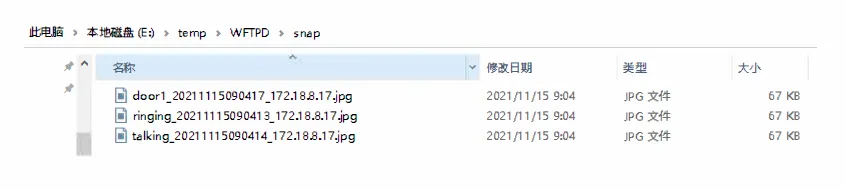

تسمية ملف التقاط الصورة: الحدث + الطابع الزمني

تنسيق تسمية التقاط الصورة

استكشاف الأخطاء وإصلاحها: لا تعمل وظيفة التقاط الصور

إذا لم يتم حفظ أي صور على الخادم، فتحقق مما يلي:

  1. الشبكة: تأكد من أن الجهاز يمكنه الوصول إلى الخادم

  2. تكوين الخادم: تحقق من اسم المستخدم / كلمة المرور وصلاحيات الكتابة؛ اختبر التحميل باستخدام أدوات أخرى

  3. مشكلات أخرى: اتصل بالدعم الفني
